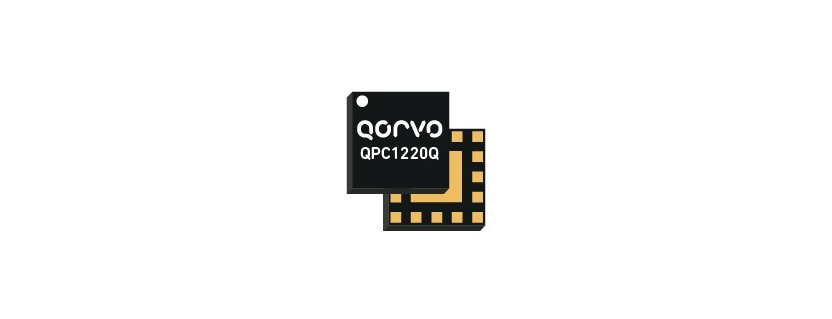

QPC1220Q RF Switch by Qorvo

QPC1220Q RF Switch by Qorvo

The QPC1220Q from Qorvo is a High Linearity DP4T Routing Switch that operates from 617 to 6000 MHz for multiple air interfaces including 5G. It has an insertion loss of less than 0.95 dB and provides an isolation of over 22 dB. The routing switch integrates a serial control system compatible with the RFFE 2.1 control interface. The select lines (SID) provide USID addressability and up to two placements of the QPC1220Q on the same design. It requires a single VIO voltage supply and has very low current consumption.

The QPC1220Q is available in a 16-pin package that measures 2.00 x 2.00 x 0.52 mm and offers designers a compact, easy-to-use, switch component for quick integration into multimode, multi-band systems. It is optimized for transfer routing applications and is suitable for automotive telematics, cellular band applications, 5G routing, and multi-mode GSM, CDMA, WCDMA, and LTE applications.

Product Details

  • Part Number: QPC1220Q
  • Manufacturer: Qorvo
  • Description: DP4T Routing Switch for Cellular and Automotive Applications up to 6 GHz

General Parameters

  • Type: Solid State
  • Configuration: DP4T
  • Application: 5G, Automotive, GSM, CDMA, WCDMA, LTE
  • Application Industry: Cellular, Wireless / Communication
  • Frequency: 617 to 6000 MHz
  • Insertion Loss: 0.4 to 1.65 dB
  • Isolation: 22 to 43 dB
  • Supply Voltage: 0 to 1.95 V
  • Impedance: 50 Ohms
  • VSWR: 1.1:1
  • Package Type: Surface Mount
  • Package: 16 Pin LGA
  • Dimension: 2.0 x 2.0 X 0.52 mm
  • Operating Temperature: -40 to 105 Degree C
  • Storage Temperature: -40 to 125 Degree C
  • RoHS: Yes
