In today’s interconnected world, understanding the tools and components that make our networks function smoothly is crucial. One such vital component is the RJ45 connector. This comprehensive guide will delve into the intricacies of RJ45 connectors, exploring their usage, components, and functionality.

What is an RJ45 Connector?

An RJ45 connector is a standardized interface used for network cabling. It’s most commonly recognized in its role as the connector at the ends of Ethernet cables, enabling devices such as computers, routers, and switches to communicate over a network. Now, let’s look at some of the components that an RJ45 connector consists of and connects to.

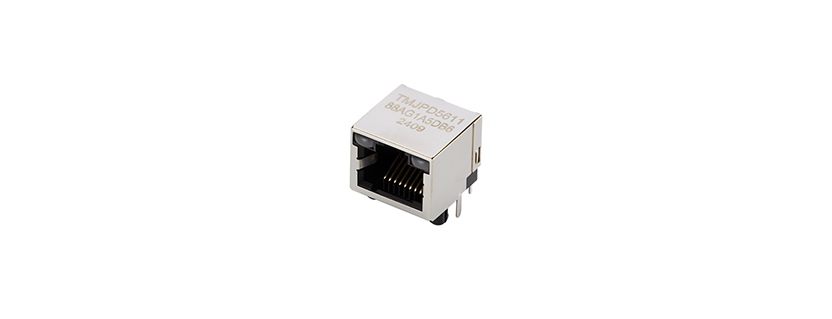

What is an RJ45 Port?

An RJ45 port is the physical interface on network devices where the RJ45 connector is plugged in. These ports are ubiquitous on devices like computers, network switches, modems, and routers, providing the gateway for data transmission across networks.

What is an RJ45 Cable?

rj45 connector cables

An RJ45 cable, often referred to as an Ethernet cable, comprises several twisted pairs of wires encased in a protective sheath. The RJ45 connectors at both ends of the cable facilitate the connection between networking devices. These cables come in various categories, such as CAT5, CAT5E, CAT6, and CAT7, each offering different performance levels in terms of speed and bandwidth.

What is an RJ45?

To put it simply, an RJ45 is a type of connector commonly used for network cabling: the RJ stands for Registered Jack and the 45 is basically a listing number. It’s the component that terminates the Ethernet cable, allowing it to interface with networking hardware.

What is an RJ45 Connector Used For?

The primary use of an RJ45 connector is in Ethernet networking. These connectors are crucial for establishing wired connections between devices in local area networks (LANs), facilitating internet access, file sharing, and other network-based communications.
RJ45 connectors are also used in telephone systems and other forms of data communication, although their most recognized function remains in networking.

RJ45 Connector Components

An RJ45 connector consists of several key components:

  • Housing: The outer plastic shell that holds all the internal parts together and provides structural integrity.
  • Contacts: Metal pins inside the connector that make contact with the wires in the Ethernet cable, allowing data to pass through.
  • Latch: A small plastic lever that locks the connector into the port to prevent accidental disconnection.
  • Crimp: The process and tool used to secure the connector onto the cable, ensuring a stable connection.

Pin Layout for RJ45

Understanding the pin layout for RJ45 connectors is crucial for proper wiring and network functionality. An RJ45 connector consists of 8 pins, each corresponding to a specific wire in the Ethernet cable. The pin layout typically follows one of two standards: T568A or T568B.

T568A Standard:

  • Pin 1: White/Green
  • Pin 2: Green
  • Pin 3: White/Orange
  • Pin 4: Blue
  • Pin 5: White/Blue
  • Pin 6: Orange
  • Pin 7: White/Brown
  • Pin 8: Brown

T568B Standard:

  • Pin 1: White/Orange
  • Pin 2: Orange
  • Pin 3: White/Green
  • Pin 4: Blue
  • Pin 5: White/Blue
  • Pin 6: Green
  • Pin 7: White/Brown
  • Pin 8: Brown

While both standards are functionally equivalent, T568B is more commonly used in the United States.

Color Coding in RJ45

Color coding in RJ45 connectors follows the pin layout standards, ensuring consistent and correct wiring across network installations. Proper color coding is essential to prevent crosstalk and signal interference, which can degrade network performance.

Advantages and Disadvantages of RJ45 Connectors

Advantages

  1. Reliability: RJ45 connectors provide a stable and secure connection, ensuring consistent data transmission with minimal interference or signal loss.
  2. Speed: These connectors support high-speed data transfer, making them ideal for modern Ethernet standards like Gigabit and 10 Gigabit Ethernet.
  3. Bandwidth: RJ45 connectors can support up to 100Mbps.
  4. Versatility: RJ45 connectors are widely used and standardized, making them compatible with a broad range of devices and networking equipment.
  5. Ease of Use: The design of RJ45 connectors, with their locking latch and straightforward crimping process, makes them user-friendly for both professional installers and DIY enthusiasts.
  6. Cost-Effective: RJ45 connectors and Ethernet cables are generally affordable, offering a cost-effective solution for building and maintaining wired networks.

Disadvantages

  1. Limited Mobility: Unlike wireless connections, RJ45 connectors require physical cables, which can restrict the mobility of connected devices.
  2. Compatibility: RJ45 are not compatible with other connectors, leading to compatibility issues. Different cable categories also require different RJ45 connectors.
  3. Installation Complexity: While crimping RJ45 connectors is not overly difficult, it requires specific tools and a basic understanding of wiring standards, which can be a barrier for some users.
  4. Susceptibility to Damage: Ethernet cables and connectors can be susceptible to physical damage, such as bending or crushing, which can impair network performance.

Functionality of an RJ45 Connector

global connectivity through rj45
The functionality of an RJ45 connector extends beyond merely connecting devices. It ensures reliable data transmission by maintaining proper electrical connections between the devices. The metal contacts inside the connector align with the wires in the Ethernet cable, allowing data to flow seamlessly.

Crimping an RJ45 Connector

Crimping is the process of attaching an RJ45 connector to the end of an Ethernet cable. This requires a crimping tool, which presses the contacts into the wires, ensuring a solid and reliable connection. Here’s a step-by-step guide to crimping an RJ45 connector:

  1. Strip the Cable: Remove about an inch of the outer jacket from the Ethernet cable, exposing the twisted pairs of wires.
  2. Untwist and Align Wires: Untwist the pairs and arrange the wires according to the T568A or T568B standard.
  3. Trim Wires: Trim the wires to ensure they are even and will fit snugly into the connector.
  4. Insert Wires into Connector: Carefully insert the wires into the RJ45 connector, making sure each wire goes into its designated slot.
  5. Crimp the Connector: Use the crimping tool to press the contacts into the wires, securing the connector to the cable.

Troubleshooting RJ45 Connections

Even with proper crimping and color coding, issues can still arise. Common problems include loose connections, incorrect pin layouts, and damaged cables. Here are some troubleshooting tips:

  • Check Connections: Ensure the connector is fully inserted into the port and that the latch has engaged.
  • Verify Pin Layout: Double-check the pin layout to ensure the correct wiring standard (T568A or T568B) has been followed.
  • Inspect Cable: Look for visible damage to the cable that could affect performance.

Conclusion

Understanding what an RJ45 connector is, its components, and its functionality is fundamental for anyone involved in networking. From providing reliable connections to ensuring efficient data transmission, RJ45 connectors are the backbone of wired networks. Whether setting up a home network or managing enterprise-level infrastructure, mastering the use of RJ45 connectors is essential for maintaining robust and efficient network communications.
