Taoglas

Taoglas is the global leader of advanced antenna designs. Using the latest in high-performance RF antenna design,
Taoglas has one of the most comprehensive portfolios of external and embedded antennas and RF components worldwide.

Product Categories

Featured Products

GNSS

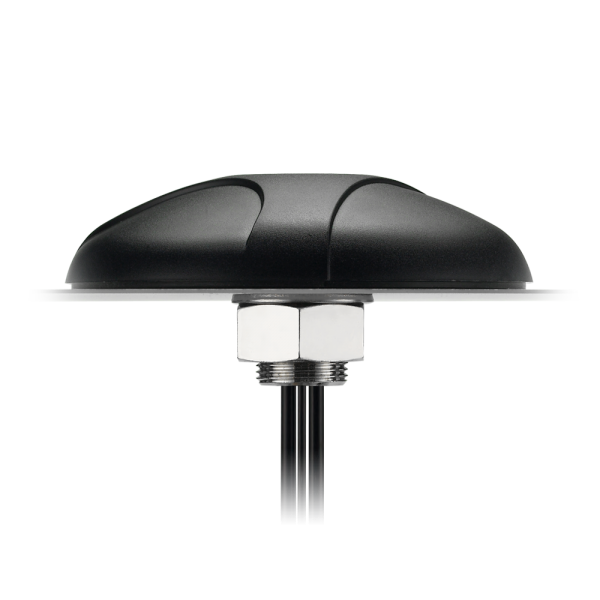

Spartan MA602 3in1 Permanent Mount GPS/GLONASS/GALILEO & 3G/2G & Iridium Ø145.6*36mm

GPS/GLONASS/GALILEO – 1575-1602MHz – 1M RG-174 SMA(M)
3dBic /2.5dBic Gain >70% Efficiency
Cellular 824-2170MHz – 1M CFD-200 SMA(M)
4dBi Gain/>>53%+ Efficiency
Iridium 1616~1626.5MHz – 1M CFD-200 SMA(M)
3.5dBic+ Gain/90%+ Efficiency
No Ground Plane Required
Diameter 145.6mm(5.73″) * Height(profile) 35.1mm(1.38″)
Waterproof IP67 Rated
RoHS & REACH Compliant

The Spartan MA602 antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. The Spartan is unique in the market because it combines a 3in1 GPS/GLONASS/GALILEO, Cellular (3G and 2G) and IRIDIUM, heavy-duty antenna with high efficiency in a compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket. For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Spartan provides a robust, rugged antenna that is durable, even in extreme environments. Customized cables and connectors version available.

Combination antennas

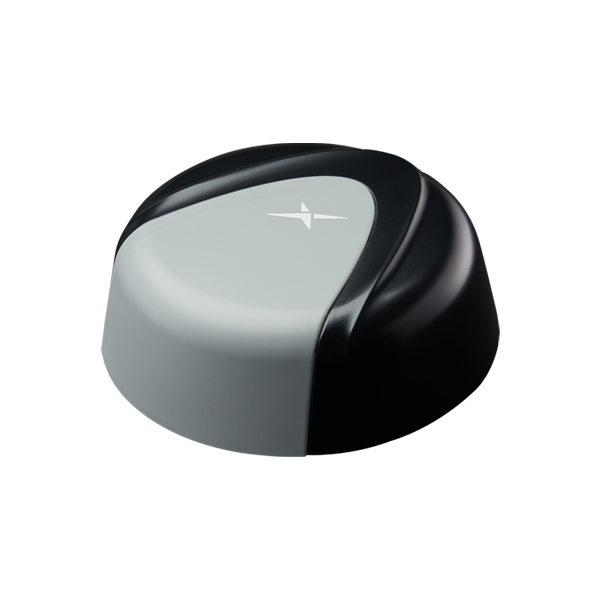

MA1509 Synergy 9-in-1 Combination Antenna – GNSS, 5*5G/4G Cellular & 3*Wi-Fi with 5m Braided Cable Assembly

4 x 5G/4G(600MHz-6GHz) MIMO Antenna
1 x 5G/4G(1.7-6GHz) Antenna
3 x Wi-Fi 2.4GHz/5GHz MIMO Antenna
1 x GPS/GLONASS/BeiDou Antenna Front End GNSS SAW Filter
IP67 Rated Waterproof
High Efficiency/Peak Gain Outdoor Antenna
Cable: 300mm RG-174LL with 4700mm TGC-200
Connectors: SMA(M) / RP-SMA(M)
RoHS & REACH Compliant

The Taoglas Synergy MA1509.AK.001 is a 9-in-1 next-generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust ABS enclosure and base. The 9 antennas inside support 5G/4G, GPS/GLONASS/BeiDou, Wi-Fi (2.4GHz/5GHz). This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G, Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac, and an optimized GPS/GLONASS/BeiDou patch antenna for location. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands.

Cellular

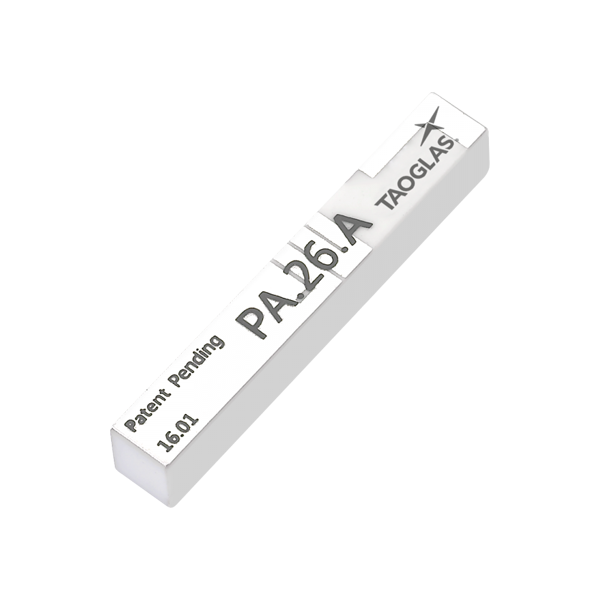

Anam PA.26A, 35*5*6mm Wideband LTE SMD Antenna

Anam LTE Cellular SMD Antenna
LTE/GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSDPA/GPRS/EDGE/IMT
High-Efficiency, Wide-Band Antenna
Patent Pending Design
Fallback to 3G/2G
Surface Mount Distribution
Dimensions: 35*5*6mm

For any LTE application that requires an embedded antenna, the Taoglas PA26A Anam is a popular choice. It is a compact high-efficiency surface mount on board ceramic antenna. It covers all LTE bands globally and every category and is an excellent choice for anyone who requires best in class antenna performance in a small form factor. The antenna is already successful in many IoT applications particularly transportation, metering and medical device applications. This is down to its robustness, ultimate performance and easy surface mount application.

Wi-Fi

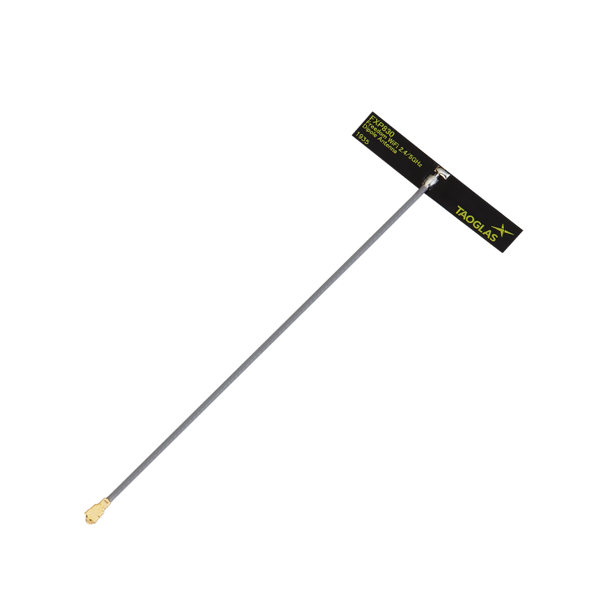

FXP830 Freedom Wi-Fi 2.4/5.8/7.1GHz Dipole Antenna, Wi-Fi 6 included, I-PEX MHF® I (U.FL)

Flexible Polymer Antenna
Covers Newly established Wi-Fi 6 bands
Covers 2.4/5.8/7.1GHz Wi-Fi Bands
Dipole Antenna
Operates in Free Space (Ground Plane Independent)
Cable: 100mm of Ø1.37mm
Connector: I-PEX MHF® I (U.FL comp)
RoHS & Reach Compliant

The FXP830 is a high efficiency, small, dipole antenna covering 2.4/5.8/7.1GHz bands including Bluetooth, Wi-Fi and the newly established Wi-Fi 6/Wi-Fi 6E, making this an ideal solution for future-proofing an IoT device. This Taoglas patent pending antenna is unique in the market because it is made from poly-flexible material, has a tiny form factor (42*7*.01mm) and has double-sided 3M tape for easy “peel and stick” mounting.
