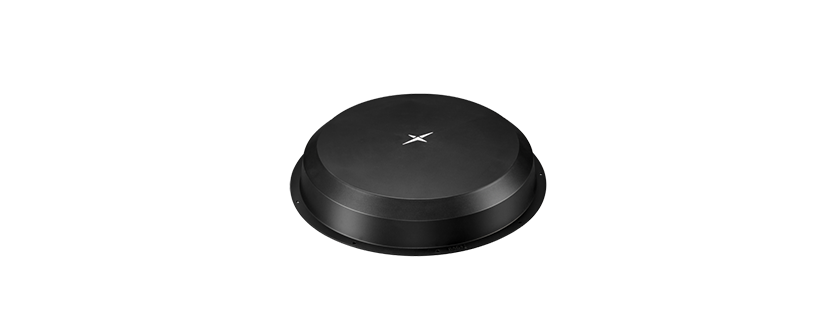

New Taoglas LoPro™ MAR140.A 4-in-1 2x 5G/4G MIMO, 1x Wi-Fi®, TV and Radio Black Low Profile RV Antenna

New Taoglas LoPro™ MAR140.A 4-in-1 2x 5G/4G MIMO, 1x Wi-Fi®, TV and Radio Black Low Profile RV Antenna

New Taoglas LoPro™ MAR140.A 4-in-1 2x 5G/4G MIMO, 1x Wi-Fi®, TV and Radio Black Low Profile RV Antenna

Low profile roof antenna for recreational vehicles

Features:

  • 2x 5G/4G MIMO 600-6000 MHz
  • Wi-Fi® 2.4/5.8 GHz
  • TV and radio



Low profile housing
IP67 rated enclosure
Mounting: Roof
Dimensions: ∅423 x 76 mm
Connectors: SMA (M) / RP-SMA(M). F-type (for TV)
RoHS and REACH compliant

4-in-1 Low Profile RV Combination Antenna with 2x 5G MIMO, Wi-Fi, and TV & Radio

The Taoglas LoPro™ MAR140.A combination antennas is designed to enhanced the connectivity options available to you for your recreational vehicle. With 4-in-1 connections available, including 5G/4G MIMO, Wi-Fi®, AM/FM and TV, this next generation, super low profile RV roof mount antenna eliminates the need for multiple antenna installations. In order to upgrade your connectivity capabilities, the LoPro is a direct, drop-in, replacement for legacy router / antenna products.

The super low profile, fully IP67 rated waterproof enclosure. It is manufactured from a robust, UV protected ABS material, ideal for use in any environment or weather condition. The antenna comes with low-loss TGC-1.5DS coaxial pigtail cables as standard, terminating in SMA(M) for LTE, RP-SMA(M) for Wi-Fi®, and F-Type connector for TV-Radio. Custom cable configurations are possible depending on your requirements.

Contact your local Taoglas customer service team for more information or installation guidelines.

NameValue
TechnologyExternal Antennas, Combination
IP RatingIP67
Impedance50
Minimum Operating Temperature (℃)-40
Maximum Operating Temperature (℃)85
Mounting StyleVehicle
Termination StyleConnector
Antenna Connector TypeSMA
Length (mm)423
Width (mm)423
Height (mm)76
Cable TypeTGC-1.5DS
Connector Body StyleStraight
PolarityLinear
Frequency Range600MHz – 6000MHz
Connector PolarityNormal
Cable Length (mm)380
VSWR<2
Weight (g)840
RoHSYes
Gain (Max)7.5
