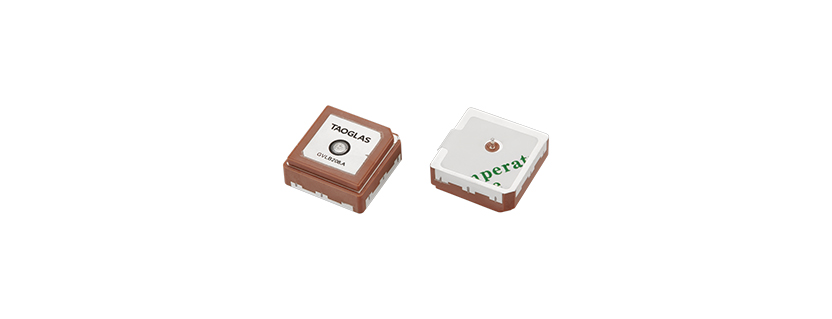

The Taoglas GVLB208.A is a high-performance, single-feed stacked patch antenna engineered to support next generation multi-frequency Global Navigation Satellite System (GNSS) applications. Designed in an ultracompact 20 x 20 x 8 mm form factor, this ceramic antenna provides robust coverage of the L1 and L5 bands, enabling enhanced positioning accuracy, improved multipath rejection, and superior performance in challenging environments.
With its Right-Hand Circular Polarization (RHCP), stable gain characteristics, and optimized efficiency across key GNSS constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS—the GVLB208.A is suited for high-precision navigation, timing, asset tracking, and industrial applications. Its pin-mount design allows straightforward integration with host PCBs, while compliance with RoHS and REACH standards ensures broad applicability in commercial and industrial deployments.
Typical Applications Include:
| Name | Value |
|---|---|
| Technology | Embedded Antennas, GNSS |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1/L5 |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Pin/Adhesive |
| Termination Style | Pin |
| Length (mm) | 20 |
| Width (mm) | 20 |
| Height (mm) | 8 |
| Polarity | RHCP |
| Frequency Range | 1176.45MHz – 1575.42MHz |
| Cable Length (mm) | n/a |
| VSWR | 2:01 |
| Weight (g) | 16 |
| RoHS | Yes |
| Gain (Max) | 1.5 |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Taoglas
