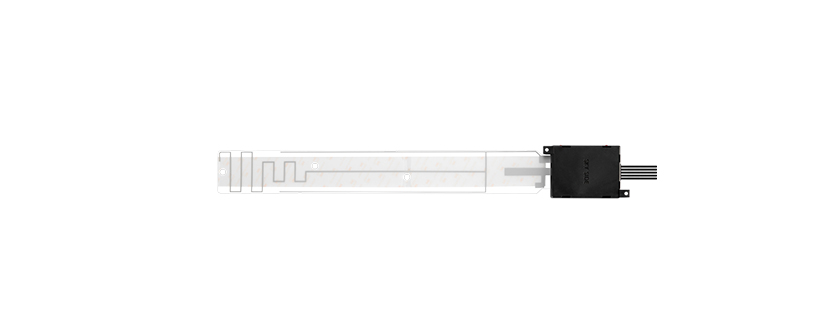

The Taoglas MA2336 is a next-generation, high-performance, low-profile 6 in-1 antenna solution, engineered for advanced automotive and heavy equipment connectivity. Designed to meet the growing demands of telematics and infotainment systems, the MA2336 integrates GNSS, dual 5G/4G cellular, dual Wi-Fi, and AM/FM reception into a single, compact unit.
Housed in a robust ABS+PC enclosure with an internal PCB architecture, the MA2336 delivers exceptional RF performance across multiple frequency bands while maintaining a sleek, covert design for seamless integration into modern vehicles. This multi-technology antenna ensures reliable connectivity for navigation, high-speed data, and entertainment applications without compromising durability or quality.
Certified to the stringent TS16949 automotive quality standard, the MA2336 is approved for OEM deployment and meets the rigorous requirements of heavy-duty truck and equipment manufacturers.
Typical Applications:
The antenna includes standard RG-174 coaxial cables with FAKRA connectors, with customization options available upon request. For tailored integration solutions, please contact your local Taoglas support team.
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| GNSS Type | Active GNSS |
| GNSS Bands | L1/L2/L5/E6 |
| Wi-Fi Bands | 2.4 – 5.8MHz |
| IP Rating | IP21 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Connector Type | FAKRA |
| Length (mm) | 553 |
| Width (mm) | 70 |
| Height (mm) | 16.7 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP, Linear |
| Frequency Range | 600MHz – 8000MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 215 |
| VSWR | 2:1 |
| Weight (g) | 137 |
| RoHS | Yes |
| Gain (Max) | 4.2 |
