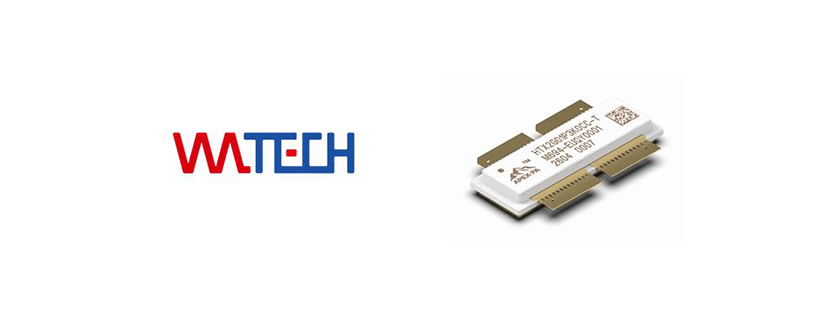

HTX2G01P3K0CC-T RF Amplifier by Watech Electronics
The HTX2G01P3K0CC-T from Watech Electronics is an LDMOS Power Amplifier (PA) that operates from 0.4 to 100 MHz. It delivers a saturated output power of 3000 W (CW) and 4000 W (pulsed). This PA provides a gain of approximately 32 dB (CW) and 34 dB (pulsed), with an efficiency of up to 69% (CW) and 74% (pulsed). It requires a DC operating drain voltage 110 V.
The HTX2G01P3K0CC-T is available in an air-cavity ceramic flanged package measuring 32.23 × 19.61 × 5.00 mm. It is ideal for plasma generators, MRI systems, CO2 lasers, nuclear magnetic resonance instruments and particle accelerator applications.
Product Details
- Part Number: HTX2G01P3K0CC-T
- Manufacturer: Watech Electronics
- Description: 3 kW LDMOS Amplifier from 0.4 to 100 MHz for Industrial and Medical Applications
General Parameters
- Type: Power Amplifier
- Configuration: IC/MMIC/SMT
- Application: Plasma Generator, Magnetic Resonance Imaging (MRI), Nuclear Magnetic Resonance (NMR)
- Frequency: 0.4 to 100 MHz
- Gain: 29.99 to 33.95 dB
- Output Power: 63.71 to 66.35 dBm
- P1dB: 63.71 to 65.98 dBm
- P1dB: 2349 to 3962 W
- Saturated Power: 64.77 dBm
- Saturated Power: 3000 W
- Pulse Power: 66.02 dBm
- Pulse Power: 4000 W
- PAE: 69.37 to 87.8%
- Pulsed/CW: CW/Pulsed
- Pulse Width: 100 uS
- Duty Cycle: 10%
- Supply Voltage: 110 V (Drain)
- Quiscent Current: 100 mA
- Technology: LDMOS
- Package Type: Flanged, Ceramic, Surface Mount
- Package: ACC3412S-4L-T
- Storage Temperature: -55 to 150 Degree C
- RoHS: Yes
- Note: Current : 0.04 mA (Drain Leakage)
