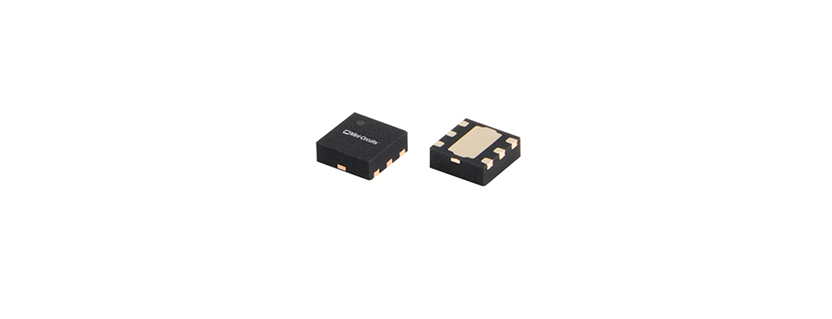

LEE1-63+ RF Amplifier by Mini-Circuits
The LEE1-63+ from Mini-Circuits is a RF Amplifier with Frequency DC to 6 GHz, Gain 12.8 to 23.4 dB, Noise Figure 3.4 to 4 dB, Output Power 11.8 to 19.3 dBm, Output Power 0.01 to 0.08 W. Tags: Surface Mount, Gain Block. More details for LEE1-63+ can be seen below.
Product Details
- Part Number: LEE1-63+
- Manufacturer: Mini-Circuits
- Description: InGaP/GaAs Gain Block Monolithic Amplifier from DC to 6 GHz
General Parameters
- Type: Gain Block
- Configuration: IC/MMIC/SMT
- Application: Radio, Electronic Countermeasure (ECM), Receivers
- Standards Supported: 5G
- Industry Application: SATCOM, Cellular, Broadcast, Radar, Electronic Warfare, Military
- Frequency: DC to 6 GHz
- Gain: 12.8 to 23.4 dB
- Noise Figure: 3.4 to 4 dB
- Output Power: 11.8 to 19.3 dBm
- Output Power: 0.01 to 0.08 W
- P1dB: 11.8 to 19.3 dBm
- P1dB: 0.01 to 0.08 W
- Grade: Military
- IP3: 26.1 to 34 dBm
- IP3: 0.40 to 2.51 W
- Input Power: 13 dBm
- Input Power: 0.02 W
- Power Dissipation: 0.43 W
- Class: 1C, C3
- Impedance: 50 Ohms
- Pulsed/CW: CW
- Reverse Isolation: 23 dB
- Sub-Category: Linear Amplifier
- Return Loss: 9 to 43 dB
- Input Return Loss: 11 to 43 dB
- Output Return Loss: 9 to 19 dB
- Supply Voltage: 4.75 to 5.25 V
- Current Consumption: 69 mA
- Technology: nGaP/GaAs
- Package Type: Surface Mount
- Package: 6-Lead QFN
- Dimensions: 1.5 x 1.5 mm
- Weight: 0.0036 g
- Operating Temperature: -55 to 105 Degree C
- Storage Temperature: -65 to 150 Degree C
- Tags: LEE1 Series
- View all
- RoHS: Yes
- Note: P3dB : 26.1 to 34 dBm
