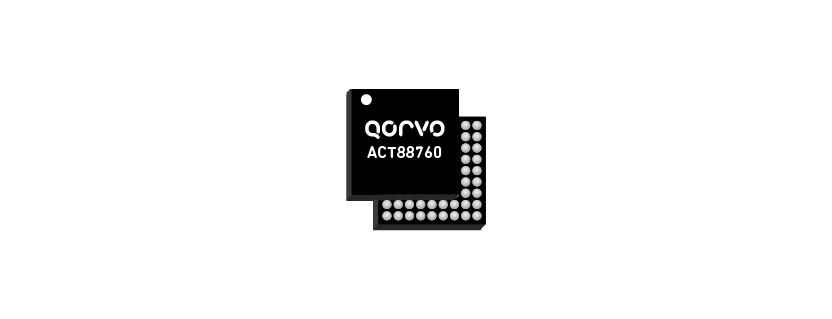

Qorvo ACT88760
5 V PMIC with 7 High Current Bucks, 6 LDOs & 10 GPIOs
Key Features
- 2.6 – 5.8V input voltage range
- 0.5 – 3.8V output voltage range
- Bucks 1 & 2: 4A bucks, dual phase (8A)
- Bucks 3 & 4: 3A bucks, dual phase (6A)
- Bucks 5 & 6: 2A bucks
- Buck 7: 4A, optimized for low VOUT (<1V)
- LDO 1 & 2: 800mA, low input voltage support (1V), high PSRR (>70dB)
- LDO 3 & 4: 400mA
- LDO 5 & 6: 400mA or configurable as load switches (up to 1.5A)
- 10 configurable GPIOs
The ACT88760 is a highly integrated power management IC designed for a wide range of processors including SSDs, video and AI processors, FPGAs, and computer vision systems. It is optimized for mid-power applications such as enterprise SSDs, cameras, AR/VR, connected home devices, and LPDDR5 systems.
The device is highly flexible and configurable via I2C, enabling multiple use cases without PCB redesign. It supports configurable output voltages down to 0.5V, startup sequencing, slew rate control, switching frequency, and low-power modes, helping reduce time to market.
The core includes seven high-efficiency buck regulators and six LDOs, with LDO5 and LDO6 configurable as load switches. The device supports input voltages from 2.6V and is designed for single lithium-ion or lithium-polymer battery systems.
| Application Processors | General purpose |
| Battery Charger | No |
| Regulated Outputs | 13 |
| Min Input Voltage (V) | 2.7 |
| Max Input Voltage (V) | 5.5 |
| Buck Converters | 7 |
| Bucks Configurable as Load Switch | 0 |
| Boost Converters | 0 |
| Buck-Boost Converters | 0 |
| LDO Regulators | 6 |
| LDOs Configurable as Load Switch | 2 (LDO 5 & 6, up to 1.5A) |
| Interface | I2C |
| Package Type | WLCSP, 81-pin |
| Package (mm) | 3.85 x 3.85 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | EAR99 |
Data Sheet Brief
Rev B – 12/2023
ACT88760EVK-102.E2 Evaluation Kit: ACT88760EVK-102.E2 Evaluation Tool User Guide
The user guide describes setup, operation, schematics, layout, BOM, and test data for the evaluation kit.
To communicate with the EVK, a USB dongle and Graphical User Interface (GUI) are provided.
ACT88760 Altium Layout Files: ACT88760 GUI
ACT88760 EVK Graphical User Interface (GUI) includes software, drivers, and usage instructions.
