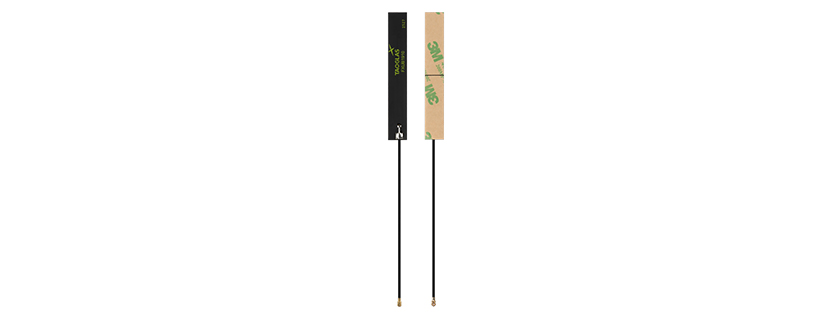

The FXUB1910 is an ultra-thin, flexible PCB antenna designed for ADS-B (Automatic Dependent Surveillance Broadcast) systems, the global aviation surveillance technology enabling safe and efficient air traffic management. Covering both 1090 ES (Extended Squitter, 1090 ± 5 MHz) and 978 UAT (Universal Access Transceiver, 978 ± 5 MHz) bands, the antenna provides robust and reliable aircraft tracking performance across worldwide deployments.
Built with a flexible polymer substrate, the FXUB1910 offers a unique combination of lightweight design and mechanical adaptability, allowing integration into housings or surfaces where rigid PCB antennas cannot be used. The antenna features a horizontal-feed configuration with a 100mm 1.37 mm coaxial cable and I-PEX MHFI connector, simplifying integration into compact systems. With efficiencies up to 57% and a peak gain of 1.3 dBi, it delivers stable omnidirectional coverage with linear polarization.
At just 80 × 12 × 0.24mm and weighing only 0.9g, the antenna’s ultra-slim profile makes it ideal for discreet mounting. A 3M 467 adhesive backing ensures secure installation on enclosures or substrates, with performance optimized on a 3 mm ABS ground plane.
Typical applications include:
Built on a flexible polymer substrate, the FXUB1910 is engineered for long-term reliability in harsh environments. Cables and Connectors can be fully customized based on customer requirements, please contact your regional Taoglas customer support team.
| Name | Value |
|---|---|
| Technology | Embedded Antennas, ADS-B |
| Mechanical Style | Flex PCB |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector Mount |
| Connector Type | I-PEX MHF I |
| Length (mm) | 80 |
| Width (mm) | 12 |
| Height (mm) | 0.24 |
| Cable Type | 1.37 mm Micro Coax Black |
| Polarity | Linear |
| Frequency Range | 973 – 1095 |
| Cable Length (mm) | 100 |
| VSWR | 2:1 |
| Weight (g) | 1 |
| RoHS | Yes |
| Gain (Max) | 1.31 |
