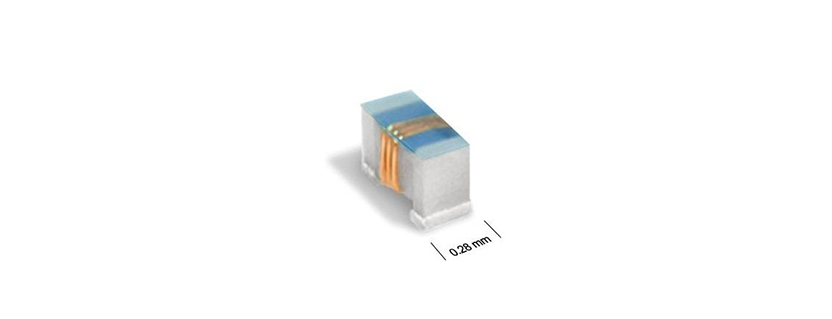

016008C-7N5XJRW RF Inductor by Coilcraft

The 016008C-7N5XJRW from Coilcraft is a RF Inductor with Inductance 0.0075 uH, DC Resistance 320 mOhms, DC Current 100 to 260 mA, Self Resonant Frequency 8.2 GHz, Operating Temperature -40 to 125 Degree C. Tags: Ceramic Inductor, Chip Inductor, Wire Wound Inductor. More details for 016008C-7N5XJRW can be seen below.

Product Details

• Part Number: 016008C-7N5XJRW
• Manufacturer: Coilcraft
• Description: 7.5 nH, Ceramic Wire Wound Chip Inductor with 8.2 GHz (SRF)

General Parameters

• Applications: 5G, LTE, IoT, Cell Phones, Wearable Devices
• Inductance: 0.0075 uH
• DC Resistance: 320 mOhms
• DC Current: 100 to 260 mA
• Self Resonant Frequency: 8.2 GHz
• Mounting: Surface Mount
• Length: 0.47 mm
• Width: 0.28 mm
• Thickness: 0.35 mm
• RoHS: Yes
• Size inches: 0.0185 x 0.011 x 0.0138 Inches
• Size mm: 0.47 x 0.28 x 0.35 mm
• Type: Ceramic Inductor, Chip Inductor, Wire Wound Inductor
• Operating Temperature: -40 to 125 Degree C
• Quality Factor: 28 to 43
• Storage Temperature: -40 to 140 Degree C
• Tolerance: ±5%
• Weight: 0.1 to 0.16 mg
