ATEK Midas MMIC Wideband Driver Amplifiers Deliver High Power in Compact Designs

Need cost-effective, efficient driver amplifiers now? ATEK Midas has an in-stock solution.

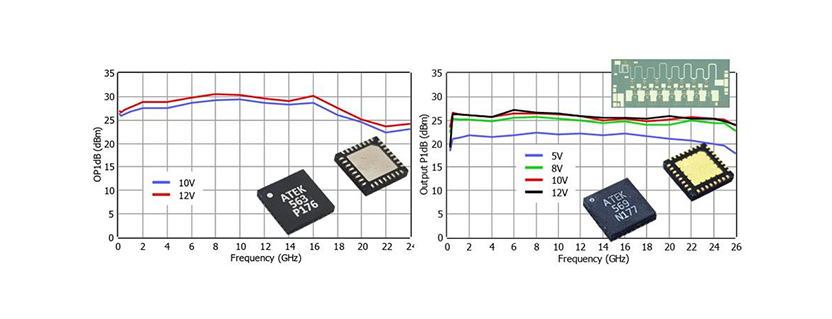

ATEK Midas MMIC Wideband Driver Amplifiers, the ATEK563P5, ATEK564P3 and ATEK569N5, feature compact size with high output power and a single positive supply, making them ideal for SDR and SATCOM applications.

ATEK563P5 – 0.2–24 GHz
• P1dB: +27 dBm
• Gain: 12 dB
• 5×5 mm Compact Size

ATEK564P3 – 5–20 GHz
• P1dB: +21 dBm
• Gain: 21 dB
• On-chip DC Block Capacitors
• 3×3 mm Compact Size

ATEK569N5 – 0.2–26 GHz
• P1dB: +25 dBm
• Gain: 14 dB
• On-chip DC Block Capacitors
• 5×5 mm Compact Size

ATEK Midas Wideband Driver Amplifiers, available in SMT or Die formats, are designed for a broad range of RF and microwave applications including EW/ECM, C-UAS, wideband receivers, spectrum analysis, IoT, and SATCOM. The ATEK563P5 delivers 0.2–24 GHz coverage, 12 dB gain, and +27 dBm P1dB performance in a compact 5×5 mm package.

View product details and datasheets:
ATEK563P5 Product Page
ATEK Midas Driver Amplifiers & Gain Blocks

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of ATEK MIDAS
