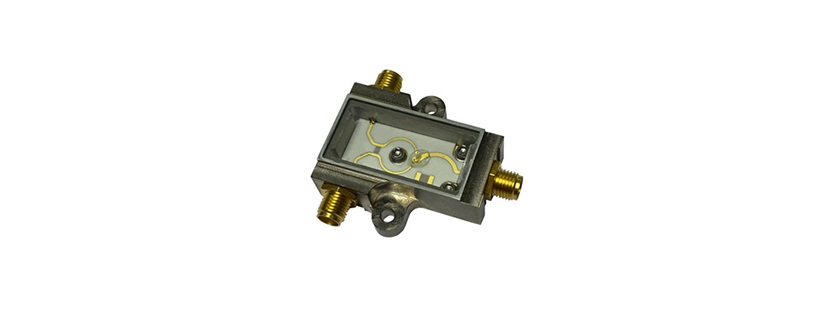

SPD301 Power Divider / Combiner by Smiths Interconnect

The SPD301 from Smiths Interconnect is a Power Divider / Combiner with Frequency 2000 to 2500 MHz, Insertion Loss 3.40 dB, Isolation 23 dB, Input Power 2 W, Amplitude Balance ±0.1 dB. Tags: Module with Connectors, Wilkinson Power Divider. More details for SPD301 can be seen below.

Product Details

• Part Number: SPD301
• Manufacturer: Smiths Interconnect
• Description: 2 W, 2 Way Wilkinson Power Divider from 2000 to 2500 MHz

General Parameters

• Configuration: 2 Way
• Applications: S-Band
• Type: Wilkinson Power Divider
• Frequency: 2000 to 2500 MHz
• Insertion Loss: 3.40 dB
• Isolation: 23 dB
• Input Power: 2 W
• Amplitude Balance: ±0.1 dB
• Return Loss: 19 dB
• Package Type: Module with Connectors
• Connector: SMA
• Operating Temperature: -55 to 125 Degree C

Courtesy of Smiths Interconnect
