MM2-0432HPSM-1 RF Mixer by Marki Microwave
The MM2-0432HPSM-1 from Marki Microwave is a GaAs Triple-Balanced MMIC Mixer with RF/LO frequencies from 4 to 32 GHz and IF frequencies from 2 to 8 GHz. It is designed to deliver low conversion loss, high linearity, and isolation in a compact form factor, making it suitable for space-constrained RF assemblies. This MMIC mixer has a conversion loss of 7 dB and provides an isolation of 40 dB (RF-to-IF) and 45 dB (LO-to-RF). It has an input P1dB of +24 dBm.

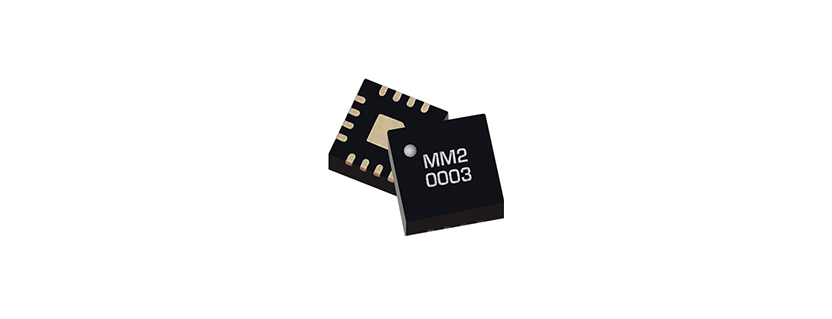

The MM2-0432HPSM-1 triple-balanced mixer is available in a compact 3 x 3 mm QFN package. It is ideal for test and measurement equipment, radar, SATCOM, and electronic warfare applications. This mixer has an EAR99 export classification.
Product Details
- Part Number: MM2-0432HPSM-1
- Manufacturer: Marki Microwave
- Description: GaAs Triple-Balanced MMIC Mixer from 4 to 32 GHz
General Parameters
- Type: Triple Balanced Mixer, Passive Mixer
- Application: Electronic Warfare, Test & Measurement, Radar, SATCOM
- RF Frequency: 4 to 32 GHz
- LO Frequency: 2 to 34 GHz
- IF Frequency: 2 to 8 GHz
- Conversion Loss: 6 to 7 dB
- LO Drive – Power: 15 to 21 dBm
- P1dB: 21 to 24 dBm (Input)
- IP3: 22 to 24 dBm
- LO/RF Isolation: 45 dB
- LO/IF Isolation: 40 dB
- Supply Current: 15 to 24 mA
- Impedance: 50 Ohms
- Package Type: Surface Mount
- Dimension: 3 x 3 mm
- Operating Temperature: -55 to 100 Degree C
- Storage Temperature: -65 to 125 Degree C
- RoHS: Yes
- Note: Moisture Sensitivity Level: MSL 1
