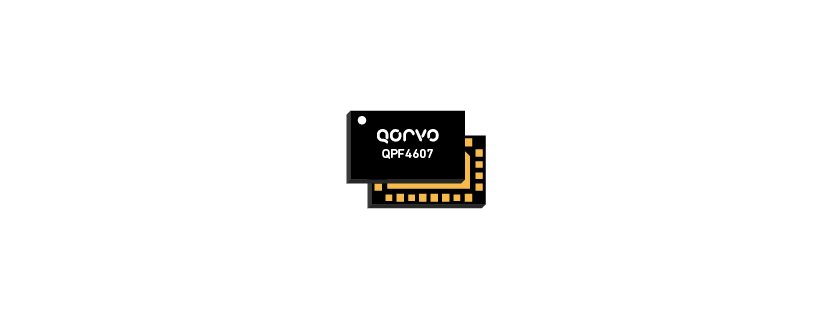

The Qorvo® QPF4607 is an integrated front end module (FEM) designed for Wi-Fi 7 (802.11be) systems. The compact form factor and integrated matching minimizes layout area in the application.
Performance is focused on optimizing the PA for a 5V supply voltage that minimizes power consumption to allow for systems that use digital pre-distortion to achieve the highest linear output power and leading edge throughput for the RF chain. This is done across a wide bandwidth enabling operation in all channels from UNII5-8 (5.945 to 7.125 GHz)
A coupler with RF output is integrated for DPD feedback training. Options for alternate routing of the feedback are included with low loss. For power control a broadrange, constant slope voltage logarithmic power detector is provided for application feedback. The module includes a state to turn the FEM on and off, which could reduce bill of material or give an option to reduce current draw.
The QPF4607 integrates a 6 GHz power amplifier (PA), single pole two throw switch (SP2T) and bypassable multi-mode low noise amplifier (LNA) into a single device.
| Frequency Min(GHz) | 5.945 |
| Frequency Max(GHz) | 7.125 |
| Functionality | PA+SW+LNA+CPLR |
| Wi-Fi Standards | Wi-Fi 7 |
| Vcc(V) | 5 |
| 11ax Pout(dBm) | 21.5 |
| 11ax EVM(dB) | -43 |
| 11ax Current(mA) | 195 |
| 11ac Pout(dBm) | 23 |
| 11ac EVM(dB) | -35 |
| 11ac Current(mA) | 350 |
| 11n Pout(dBm) | 24.5 |
| 11n EVM(dB) | -30 |
| 11n Current(mA) | 360 |
| Tx Gain(dB) | 34 |
| OP1dB(dBm) | 29.5 |
| Rx Gain(dB) | 13.5/4 |
| NF(dB) | 1.8/3 |
| Bypass Loss(dB) | 7 |
| Rx Current(mA) | 20 |
| Package Type | Laminate |
| Package(mm) | 5.0 x 3.0 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | 5A991G |
Data Sheet Brief: Rev B – 05/15/2026
