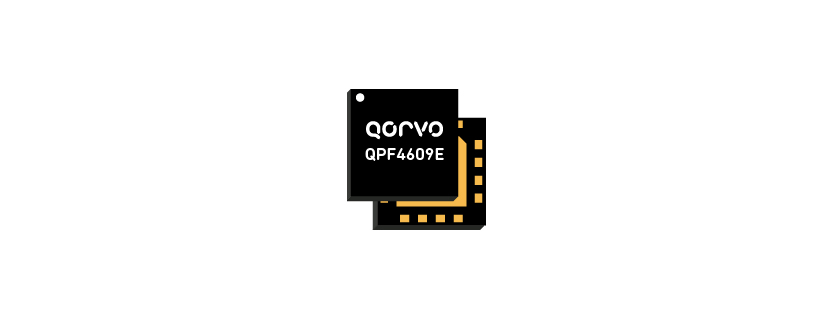

Qorvo QPF4609E 6 GHz Wi-Fi 7 High Power Front End Module
Key Features
-
5945 – 7125 MHz
-
PSAT = +32 dBm
-
Optimized for +5 V Operation
-
DC Power = 1.4 W at +24 dBm
-
32 dB Tx Gain
-
1.8 dB Noise Figure
-
14.5 dB Rx Gain & 6.5 dB Bypass Loss
-
25 dB 2.4 GHz Rejection on Rx Path
-
Integrated RF Coupler & DC Logarithmic Power Detector
The Qorvo® QPF4609E is an integrated front end module (FEM) designed for Wi-Fi 7 (802.11be) systems. The small form factor and integrated matching minimizes layout area in the application.
Performance is focused on optimizing the PA for a 5V supply voltage that minimizes power consumption to allow for systems that use digital pre-distortion to achieve the highest linear output power and leading edge throughput for the RF chain. This is done across a wide bandwidth enabling operation in all channels from UNII5-8 (5.925 to 7.125 GHz).
A coupler with RF output is integrated for DPD feedback training. For power control a broadrange, constant slope voltage logarithmic power detector is provided for application feedback.
The QPF4609E integrates a 6 GHz power amplifier (PA), single pole two throw switch (SP2T), coupler structure and bypassable low noise amplifier (LNA) into a single device.
| Frequency Min(GHz) | 5.945 |
| Frequency Max(GHz) | 7.125 |
| Functionality | PA+SW+LNA+CPLR |
| Wi-Fi Standards | Wi-Fi 7 |
| Vcc(V) | 5 |
| 11ax Pout(dBm) | 21.5 |
| 11ax EVM(dB) | -43 |
| 11ax Current(mA) | 235 |
| 11ac Pout(dBm) | 23 |
| 11ac EVM(dB) | -35 |
| 11ac Current(mA) | 260 |
| 11n EVM(dB) | -30 |
| Tx Gain(dB) | 32 |
| OP1dB(dBm) | 30 |
| Rx Gain(dB) | 14.5 |
| NF(dB) | 1.8 |
| Bypass Loss(dB) | 6.5 |
| Rx Current(mA) | 19 |
| Package Type | Laminate |
| Package(mm) | 3.0 x 3.0 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes |
| ITAR Restricted | No |
| ECCN | 5A991G |
Data Sheet Brief: Rev A – 03/04/2026
