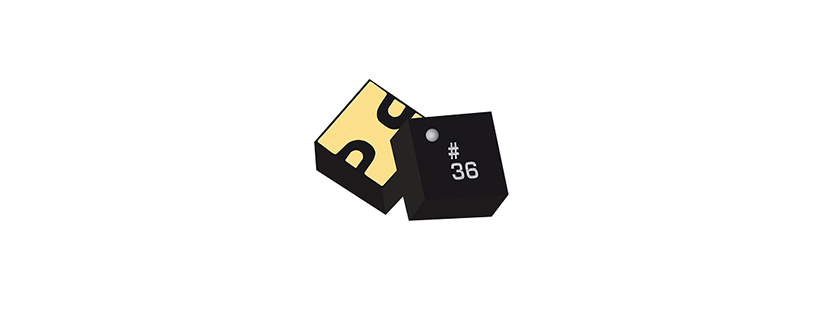

ATN09-0070CSP1 Fixed Attenuator by Marki Microwave
The ATN09-0070CSP1 from Marki Microwave is a GaAs MMIC Attenuator that operates from DC to 70 GHz. It provides 9.1 dB of attenuation with a flatness of 0.6 dB. This attenuator can handle an input power of up to 1 W and has a return loss of 19 dB. It is based on GaAs MMIC technology that provides consistent unit-to-unit performance in a small, low-cost form factor. This MMIC attenuator maintains 50-Ohm matching across the entire operating frequency range to ensure reliable attenuation.
This ATN09-0070CSP1 allows for extreme miniaturization of the SMT footprint while providing die-level performance. It is available in a chip-scale package measuring 1.5 x 1.5 mm. It is ideal for test equipment, precision characterization, amplitude matching, high-channel count systems & 5G applications. This GaAs attenuator has an EAR99 export classification.
Product Details
- Part Number: ATN09-0070CSP1
- Manufacturer: Marki Microwave
- Description: 9 dB GaAs MMIC Attenuator from DC to 70 GHz
General Parameters
- Type: Fixed Attenuator
- Frequency: 0 to 70 GHz
- Attenuation: 9.1 dB
- Power: 1 W
- Package Type: Chip
- Dimension: 1.5 × 1.5 mm
- Impedance: 50 Ohms
- Size: 1.5 × 1.5 × 0.9 mm
- Substrate: GaAs
- Attenuation Accuracy: ±0.1 dB
- Height: 0.90 mm
- Length: 1.5 mm
- Width: 1.5 mm
- Operating Temperature: -55 to 100 Degree C
- Storage Temperature: -65 to 125 Degree C
