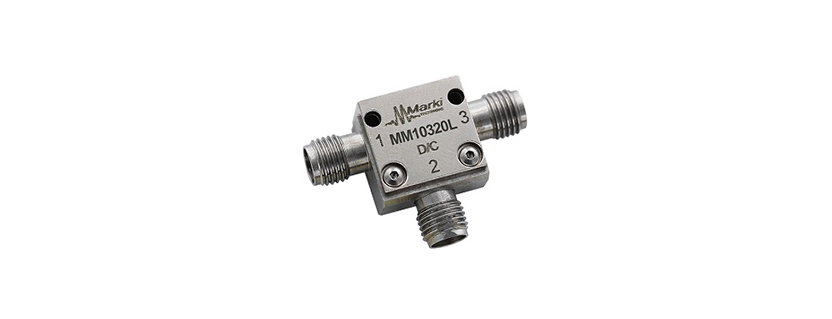

MM1-0320LBH RF Mixer by Marki Microwave
The MM1-0320LBH from Marki Microwave is a GaAs MMIC Double Balanced Mixer with LO/RF frequencies from 3 to 20 GHz and an IF frequency range from DC to 4 GHz. It is a passive mixer featuring CAD-optimized isolation and spurious-free performance in a high-performance BH package, with a low LO drive requirement of +5 dBm. This double-balanced mixer has a conversion loss of 7 dB with an input IP3 of 8.5 dBm and an LO-to-RF isolation of 52 dB.
The MM1-0320LBH is available as a module measuring 1.142 x 0.781 x 0.330 inches and has 2.92 mm (female) connectors. It is ideal for use in test and measurement equipment, SATCOM, radar, electronic warfare, and aerospace & defense applications. This REACH- and RoHS-compliant mixer has an EAR99 export classification and can operate over a temperature range of -55°C to +100°C.
Product Details
- Part Number: MM1-0320LBH
- Manufacturer: Marki Microwave
- Description: GaAs MMIC Double Balanced Mixer from 3 to 20 GHz
General Parameters
- Type: Double Balanced Mixer, Passive Mixer
- Application: Test & Measurement, SATCOM, Radar, Military
- RF Frequency: 3 to 20 GHz
- LO Frequency: 3 to 20 GHz
- IF Frequency: DC to 4 GHz
- Noise Figure: 7 to 8.5 dB
- LO Drive – Power: 5 to 9 dBm
- P1dB: 0 to 3 dBm
- IP3: 8.5 to 9 dBm
- LO/RF Isolation: 45 to 52 dB
- LO/IF Isolation: 27 to 34 dB
- Impedance: 50 Ohms
- Package Type: Module with Connectors
- Connector: 2.92 mm, 2.92 mm – Female
- Connector IF: 2.92 mm – Female
- Connector LO: 2.92 mm – Female
- Connector RF: 2.92 mm – Female
- Operating Temperature: -55 to 100 Degree C
- Storage Temperature: -65 to 125 Degree C
- Grade: Space, Commercial, Military
- RoHS: Yes
