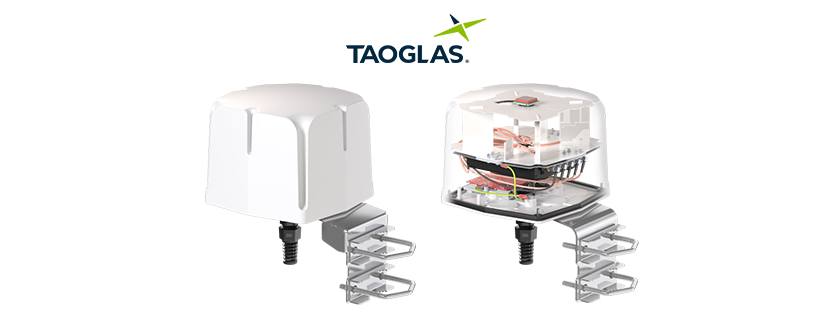

New Taoglas Thunder THORPBR1PA Integrated Wideband 5G/4G Lite Omnidirectional Antenna for Peplink MAX BR1 Pro 5G
- Integrated Wideband 5G/4G Omnidirectional Antenna for Peplink MAX BR1 Pro 5G
- Wideband 5G/4G, Dual-Band Wi-Fi®, & GNSS Antennas covering 600-6350 MHz
- 4x 5G/4G, 2x Wi-Fi®, & GNSS Antennas
- Wall / Pole mount antenna
- IP67 rated waterproof enclosure
- Connector: RJ45
- Dimensions: 210 x 210 x 165 mm
- RoHS and Reach Compliant
Integrated Wideband 5G/4G Lite Omnidirectional Antenna for Peplink MAX BR1 Pro 5G
The Taoglas THORPBR1LPA is an omnidirectional all-in-one antenna for Peplink MAX BR1 Pro 5G routers designed for use in a variety of wireless communication applications. It has embedded omnidirectional 5G/4G, Wi-Fi®, and GNSS antennas. If you use a Peplink MAX BR1 Pro 5G router with a THORPBR1LPA Thunder omnidirectional antenna enclosure, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.
Typical applications include:
- Critical Communications and Public Safety
- Transportation & Fleet Management
- Industrial and Rugged Environments
- Enterprise & IoT Deployments
The heavy-duty, fully IP67 rated external ASA enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6350 MHz, the THORPBR1LPA is a fantastic solution for wideband cellular, Wi-Fi®, and GNSS applications.
The set contains an Active PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
Contact your regional Taoglas customer support team for more information.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 80 |
| Mounting Style | Pole, Wall |
| Termination Style | Connector Mount |
| Connector Type | RJ45 |
| Length (mm) | 210 |
| Width (mm) | 210 |
| Height (mm) | 165 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarity | Vertical |
| Frequency Range | 600 – 6350 MHz |
| Connector Polarity | Normal |
| VSWR | <3 |
| Weight (g) | 1800 |
| RoHS | Yes |
| Gain (Max) | 5 |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Taoglas
