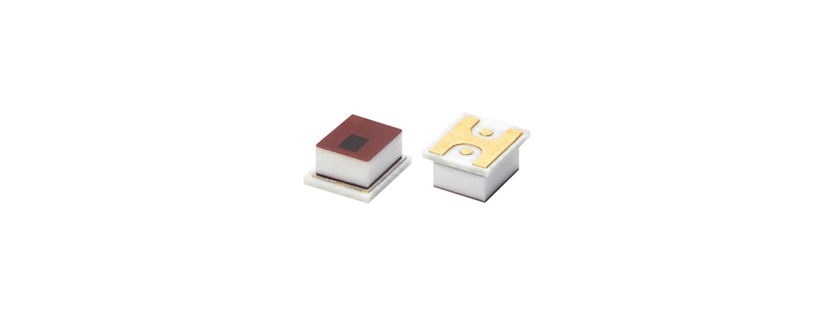

HFHKI-5000+ RF High Pass Filter by Mini-Circuits

The HFHKI-5000+ from Mini-Circuits is a RF High Pass Filter with Frequency 5600 to 16000 MHz, Bandwidth 10400 MHz, Insertion Loss 1.2 to 3 dB, Power 6 W, Rejection 20 to 66 dB. Tags: Surface Mount, Ceramic Filter. More details for HFHKI-5000+ can be seen below.

Product Specifications

Product Details

• Part Number: HFHKI-5000+
• Manufacturer: Mini-Circuits
• Description: 6 W, LTCC Surface Mount High Pass Filter from 5600 to 16000 MHz

General Parameters

• Type: Ceramic Filter
• Frequency: 5600 to 16000 MHz
• Bandwidth: 10400 MHz
• Insertion Loss: 1.2 to 3 dB
• Power: 6 W
• Rejection: 20 to 66 dB
• Lower Rejection: 20 to 66 dB
• Cut off Frequency: 5 GHz
• Return Loss: 7.5 to 13.5 dB
• Impedance: 50 Ohms
• Package Type: Surface Mount
• Operating Temperature: -55 to 125 Degree C
• Storage Temperature: -55 to 125 Degree C
• Grade: Military
• Application Industry: Radar, Test & Measurement, Military
• Application: Electronic Warfare, ECM, Transmitter / Receiver
• RoHS: Yes
