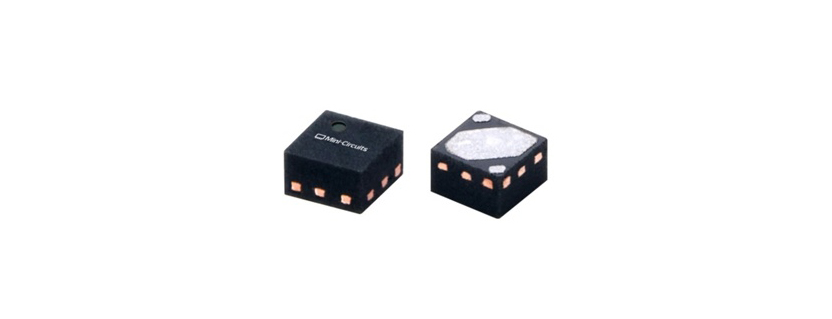

XAT-0+ Fixed Attenuator by Mini-Circuits

The XAT-0+ from Mini-Circuits is a Fixed Attenuator with Frequency DC to 45 GHz, Attenuation 0.15 to 1.2 dB, Power 2 W, Weight 0.002 grams, Operating Temperature -45 to 105 Degree C. Tags: Surface Mount. More details for XAT-0+ can be seen below.

Product Details

• Part Number: XAT-0+
• Manufacturer: Mini-Circuits
• Description: 0 dB MMIC Surface Mount Fixed Attenuator from DC to 45 GHz

General Parameters

• Frequency: DC to 45 GHz
• Attenuation: 0.15 to 1.2 dB
• Power: 2 W
• Package Type: Surface Mount
• Dimension: 1 × 1 mm
• Weight: 0.002 grams
• Application Standards: ECM Defense Systems, Telecom, 5G sub-6 GHz, mmW
• Applications: Test & Measurement, Test Equipment, SATCOM, Radar, Electronic Warfare, Wireless Infrastructure
• Impedance: 50 Ohms
• Package: 2-Lead QFN
• RoHS: Yes
• Operating Temperature: -45 to 105 Degree C
• Storage Temperature: -65 to 150 Degree C
• Note: Return loss: 15 to 20 dB
