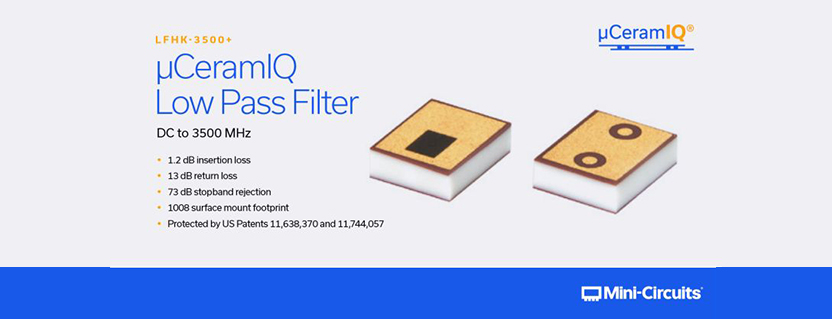

Mini-Circuits LFHK-3500+
LTCC SMT Low Pass Filter, DC – 3500 MHz, 50Ω
The LFHK-3500+ is a passive RF component designed for signal conditioning in low-frequency circuits. It utilizes ceramic-based construction to achieve stable electrical behavior across a broad operating range. The device supports bidirectional signal flow and is optimized for integration into compact layouts, making it suitable for dense PCB designs. It’s surface-mount format aligns with standard automated assembly processes, and the internal structure is engineered to minimize parasitic effects that could impact performance at microwave frequencies. The component is built to maintain consistent characteristics under varying environmental conditions, contributing to overall system reliability.
THE BIG DEAL
- Low Insertion Loss, 1.2 dB Typ.
- Passband Return Loss, 13 dB Typ.
- Stopband Rejection, 73 dB Typ.
- 1008 Surface Mount Footprint
- Power Handling: 9.5 W
- Shielded Construction: Prevents De-Tuning & EMI
- Protected by US Patents 11,638,370 and 11,744,057
APPLICATIONS
- Harmonic Rejection
- Military Radar Applications
- Test and Measurement
- Telecommunications & Broadband Wireless Applications
