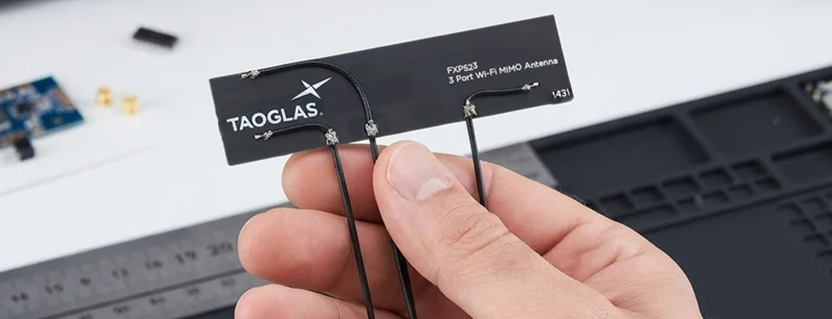

Taoglas Flexible MIMO Antennas Designed for High-Speed Connectivity
Taoglas Venti Series, a family of embedded Wi-Fi® MIMO flexible PCB antennas designed to deliver reliable, high-speed wireless connectivity in space-constrained devices. Available in 2-in-1, 3-in-1, and 4-in-1 MIMO configurations, the Venti Series supports the latest Wi-Fi® frequencies across the 2.4 GHz, 5 GHz, and 7 GHz bands.
Small Antenna. Powerful MIMO Wi-Fi.
The Venti Antenna Series (FXP522, FXP523, and FXP524) introduces a versatile range of 2-in-1, 3-in-1, and 4-in-1 MIMO flexible PCB antennas engineered for high-performance Wi-Fi applications. Spanning 2.4, 5.8, and 7.125 GHz frequencies, these omni-directional antennas feature an ultra-thin 0.15 mm profile designed to fit tightly inside compact plastic enclosures like routers, gateways, and smart home devices.
Built with a convenient “peel and stick” 3M tape mounting system and standard I-PEX connectors, the Venti series ensures effortless installation while delivering exceptional isolation, efficiency, and reliability for modern wireless connectivity solutions.
Ultra-Low Profile Design: At just 0.15 mm thick, the flexible form factor fits seamlessly into narrow spaces and compact plastic enclosures for routers, gateways, tablets, and smart devices.
Flexible MIMO Configurations: Available in 2-in-1 (FXP522), 3-in-1 (FXP523), and 4-in-1 (FXP524) layout options to precisely match diverse multi-antenna networking and throughput requirements.
Optimized for Plastic Housings: Specifically tuned on ABS and PC plastics, guaranteeing reliable isolation and radiation efficiency in real-world commercial device environments.
Hassle-Free Installation: Features a practical “peel and stick” double-sided 3M tape mounting mechanism alongside standard I-PEX MHF I connectors for quick, robust deployment.
Broad Wi-Fi Coverage & Customization: Operates seamlessly across core Wi-Fi frequencies (2.4, 5.8, and 7.125 GHz) with customizable cable lengths and connector options available to meet unique integration needs.
High efficiency and isolation: Delivering reliable throughput and improved wireless performance.

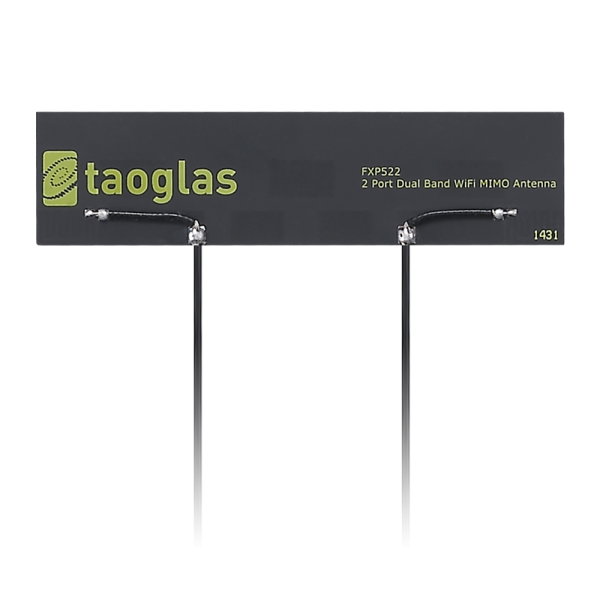

FXP522
- Dims: 80 x 20 mm
- Antenna type: Flexible PCB
- Layout: 2x MIMO
- Freq covered: 2.4/5.8 /7.1 GHz
- Connector: I-PEX MHF I
- Cable: 100 mm
- Weight: 7.9 g
- Gain (max): 6.4 dBi
- Customizable cable and connector option available

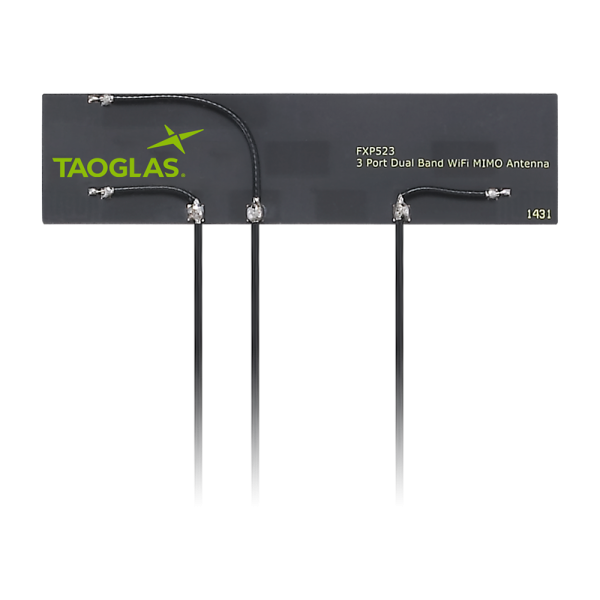

FXP523
- Dims: 80 x 20 mm
- Antenna type: Flexible PCB
- Layout: 3x MIMO
- Freq covered: 2.4/5.8/ 7.1 GHz
- Connector: I-PEX MHF I
- Cable: 120 mm
- Weight: 8.2 g
- Gain (max): 4.5 dBi
- Customizable cable and connector option available

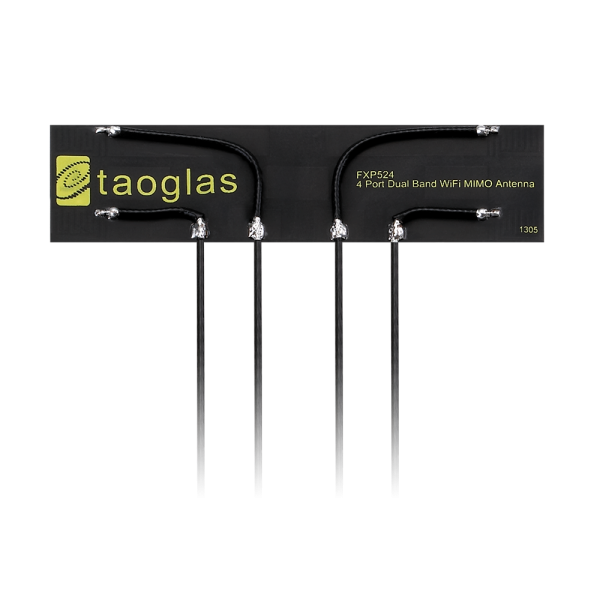

FXP524
- Dims: 80 x 20 mm
- Antenna type: Flexible PCB
- Layout: 4x MIMO
- Freq covered: 2.4/5.8/ 7.1 GHz
- Connector: I-PEX MHF I
- Cable: 100 mm
- Weight: 8.4 g
- Gain (max): 4.4 dBi
- Customizable cable and connector option available
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Taoglas
