Real-Time RF Spectrum Monitoring & Regulatory Compliance

As wireless environments become increasingly congested, real-time RF spectrum monitoring is essential for maintaining spectrum hygiene, preventing interference, and ensuring regulatory compliance. This article explains how HAROGIC Spectrum Analyzers support live event frequency coordination, satellite uplink monitoring, and automated RF compliance workflows.

Fundamentals of RF Spectrum Regulation & Monitoring

The Challenge of Spectrum Congestion

The radio frequency spectrum is a finite resource governed by global regulatory bodies, including FCC, CEPT, and ITU. In high-density wireless venues, such as Broadway productions, stadiums, and satellite earth stations, dozens or hundreds of wireless devices operate in close proximity across shared or adjacent bands.

UHF/VHF Broadcast Bands: Used heavily for wireless microphones, In-Ear Monitors (IEMs), and intercoms.

C-Band / Ku-Band / Ka-Band: Used for satellite communication (SatCom) uplink and downlink signals.

ISM & Unlicensed Bands (2.4 GHz / 5 GHz / 6 GHz): Congested with Wi-Fi, Bluetooth, and digital wireless equipment.

Key RF Mechanisms to Mitigate

Intermodulation Distortion (IMD): When multiple high-power transmitters operate close to each other, non-linear mixing produces intermodulation products, such as f_IMD = 2f1 – f2 or f1 + f2 – f3. These ghost signals cause unexpected interference on supposedly clean channels.

Transient / Intermittent Interference: Short-burst signals, rogue transmitters, or local LED/digital wall noise floor spikes that escape traditional slow-sweeping receivers.

Frequency Drift & Over-Power Transmissions: Uncalibrated transmitters operating outside designated spectral masks or exceeding licensed power limits.

Technical Solution: HAROGIC Architecture Advantage

Traditional benchtop spectrum analyzers are bulky, power-hungry, and difficult to deploy in embedded environments or mobile racks. Conversely, handheld field meters often lack the real-time sweep speed, low phase noise, and API integration required for automated software platforms.

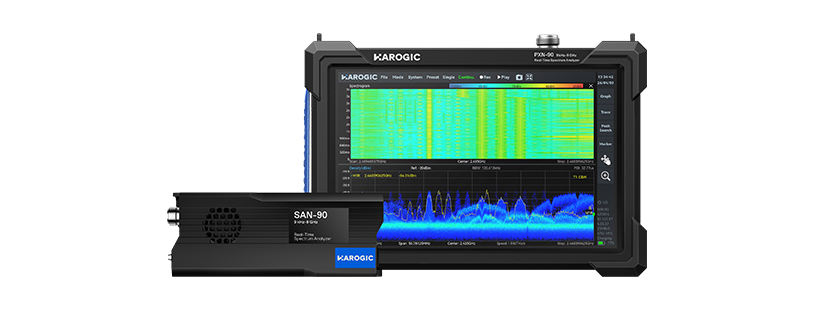

HAROGIC USB Spectrum Analyzers and Receiver modules bridge this gap with a compact, high-performance architecture.

Key Feature	SA Series	PX Series	Handheld Series
Form factor	USB	USB	Handheld
Frequency range	9 kHz-4.5/6/9/20/40 GHz	9 kHz-4.5/6/9/20/40 GHz	9 kHz-4.5/6/9/20/40 GHz
Phase noise, 1 GHz @10 kHz offset	As low as -110 dBc/Hz	As low as -110 dBc/Hz	As low as -110 dBc/Hz
DANL, 1 GHz	-168 dBm/Hz	-168 dBm/Hz	-168 dBm/Hz
Weight and Size	<500 g	1.5 kg	1.5 kg
Sweep speed, RBW=250 kHz	Over 1 THz/s	Over 1 THz/s	Over 1 THz/s
Open API & Multi-Platform SDK	C++/Python/Linux/Windows support for custom control.	C++/Python/Linux/Windows support for custom control.	C++/Python/Linux/Windows support for custom control.

Real-World Application Scenarios

Scenario A: Live Performance & Broadcast Frequency Coordination

In major live events or theater productions, dozens of wireless microphones, IEMs, and comms systems must operate without interference.

Pre-Show RF Site Audit: The HAROGIC analyzer performs a high-speed sweep of the local UHF spectrum (470-698 MHz) to map active TV channels, noise floors, and ambient interference.

Data Export to Coordination Software: Raw scan data is fed directly via SDK or API into coordination tools, such as SoundBase or Wireless Workbench, to calculate IMD-free frequency sets.

Continuous Monitoring: During the performance, the analyzer runs in continuous sweep mode. If an unauthorized transmitter turns on, the system flags the conflict in real time.

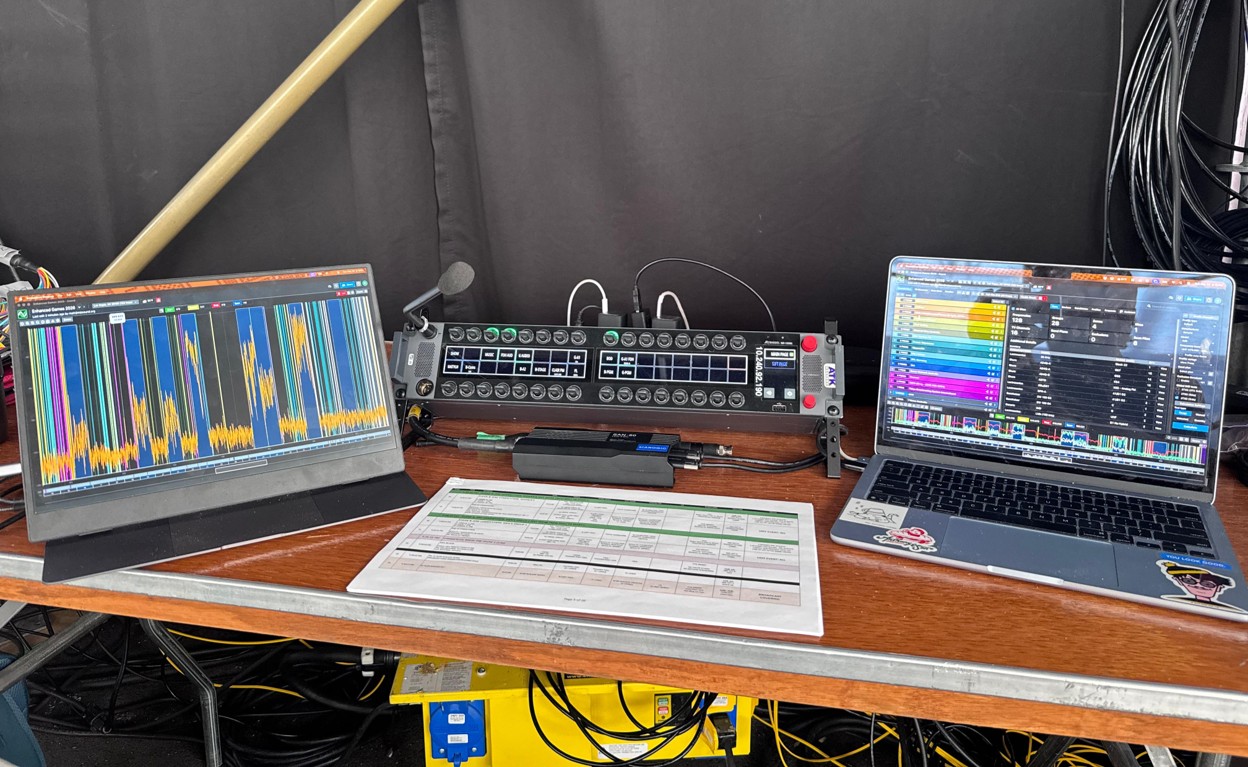

With HAROGIC USB spectrum analyzers, RF teams can integrate fast spectrum scanning into software workflows such as SoundBase, supporting faster coordination decisions and more reliable show-time operation.

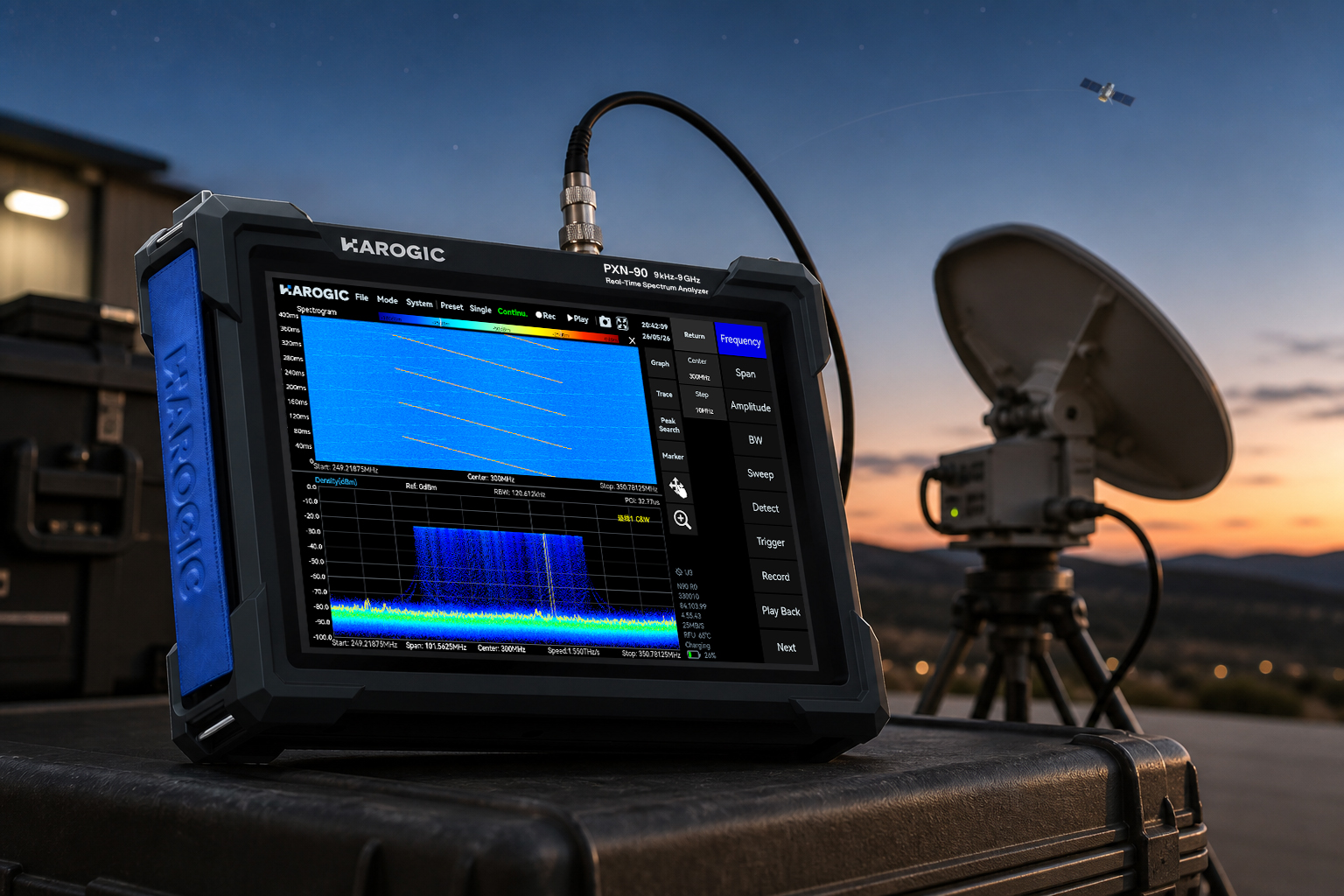

Scenario B: Satellite Uplink Monitoring & Regulatory Compliance

Satellite operators manage ground stations and uplink facilities transmitting high-power RF signals. In this environment, continuous spectrum monitoring is essential for protecting allocated channels, validating signal quality, and avoiding interference with adjacent services.

Carrier Mask Verification: Ensuring uplink transmissions strictly adhere to allocated bandwidth masks to prevent adjacent transponder bleedover.

Spurious & Harmonic Hunting: Continuous sweep across broad frequency bands to detect unwanted non-harmonic spur emissions from high-power amplifiers (HPAs).

Automated Alarm Generation: When signal levels exceed allowed thresholds or rogue emissions are detected, the HAROGIC receiver triggers automated alarms via network monitoring software.

Practical Implementation Workflow

To set up an automated RF monitoring and regulation system using a HAROGIC receiver, follow this four-step workflow.

Physical Deployment: Connect the HAROGIC Analyzer to a directional or omnidirectional antenna suited for the target band, such as 400 MHz-6 GHz. Mount the device in the equipment rack or field box.

Establish Baseline Noise Floor: Execute a baseline scan during an RF quiet period to identify static broadcast transmitters and ambient room noise.

Set Up Real-Time Mask & Thresholding: Define upper-bound spectral limits. Any signal exceeding the limit for a specified duration triggers an event log.

API Integration & Reporting: Connect the HAROGIC C++/Python API to your centralized network management dashboard to automate daily compliance reporting and event notifications.

Conclusion

Effective RF spectrum regulation requires tools that offer a balance of high dynamic range, fast sweep rates, and seamless software integration. HAROGIC Spectrum Analyzers provide the high-performance RF frontend necessary for demanding applications, from high-density live venue frequency coordination to 24/7 satellite uplink compliance monitoring.

About HAROGIC

HAROGIC combines compact, robust, high-performance RF hardware with agile, intelligent software to help customers extend RF boundaries.

Get in touch for orders or any queries: sales@rfdesign.co.za | +27 21 555 8400

Courtesy of HAROGIC Technologies
