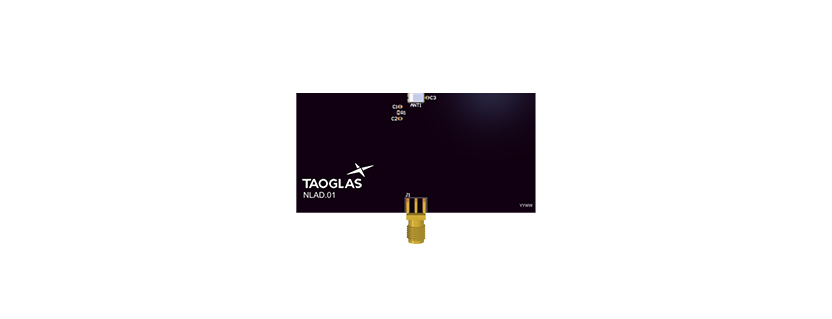

New Taoglas Evaluation Board for NLA.01 with 5pcs Antenna
- Compact, Low Profile SMD Antenna
- High efficiency, omnidirectional coverage
- Covering NTN Bands 23 and n256 from 1980 – 2200MHz
- Evaluation Board Dimensions: 80 x 40mm
- RoHS and REACH Compliant
Evaluation Board for NLA.01 with 5pcs Antenna
Taoglas has developed a unique ceramic miniature loop antenna series for Non-Terrestrial Networks (NTN) radio applications. At 5.0 x 3.0 x 0.5mm, the NLA.01 NTN ceramic loop antenna is a miniature edge mounted antenna designed for compact devices with minimal space availability. The radiation pattern of the loop antenna is more omni-directional than traditional patch antennas making it ideal for use where the orientation of the device is not known, of could change whilst the device is in use.
Mechanically, the NLA.01 at only 0.5mm in height has a low profile, and with a footprint of overall footprint including the keep out area of just 6.0 x 5.5mm, it requires less space on the device PCB when compared to larger patch style antennas. Based on the loop effect, this antenna works best when positioned in the center of the edge of the board, but it can still work better than traditional linear polarized chip antennas even when placed at the corner of the PCB as a substitute if restrictions apply elsewhere.
This antenna can be mounted with no performance degradation in either orientation if the antenna is soldered correctly via surface mounting. Please see the integration instructions section for further detail regarding the optimum way to integrate this antenna into your device.
Typical Applications for the NLA.01 include:
- Devices with Satellite Fallback from traditional Cellular Connectivity
- LEO/GEO IoT Terminals and Ground Stations
- Remote Asset Tracking, e.g. Wildlife or Livestock Tracking
- Rural and Remote Connectivity
- NTN Wearables or Smart Devices with SOS Capability
- Remote NTN Sensors
- Utility and Environmental Monitoring
The NLA.01 is delivered on tape and reel and now allows customers to integrate using automated pick-and-place machines during high-speed SMT production. For further optimization to customer-specific device environments and for support to integrate and test this antennas performance in your device, contact your regional Taoglas Customer Services Team.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | NLA.01 |
| Technology | Evaluation Boards, NTN/SatCom |
| Width (mm) | 40.2 |
| Length (mm) | 80 |
| Height (mm) | 0.8 |
| Materials | Ceramic |
