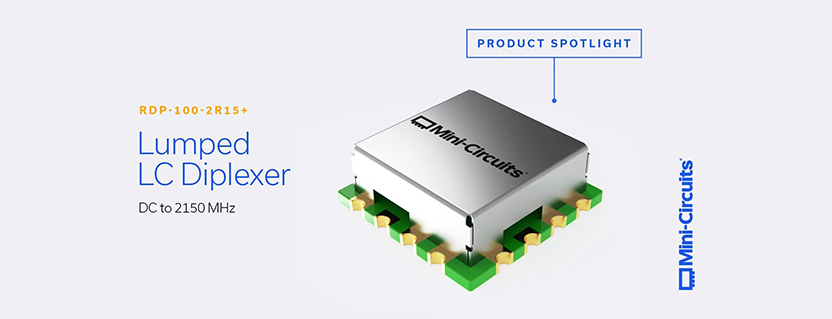

Mini-Circuits RDP-100-2R15+
Lumped LC Diplexer, DC-100/950-2150 MHz, 50Ω
KEY FEATURES
- Low Insertion Loss, 0.5 dB Typ.
- High Stopband Insertion Loss in Low Pass with 60 dB Typ. and High Pass with 70dB Typ.
- Miniature shielded package
- Good Return Loss in Low Pass and High Pass 20 dB Typ.
APPLICATIONS
- Aerospace
- Satellite
PRODUCT OVERVIEW
Mini-Circuits’ RDP-100-2R15+ is a low-pass + high-pass combination device. Low pass port is designed for DC to 100 MHz and high pass port is designed for 950 to 2150 MHz. Both low pass and high pass have high isolation and good return loss.
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Mini-Circuits
