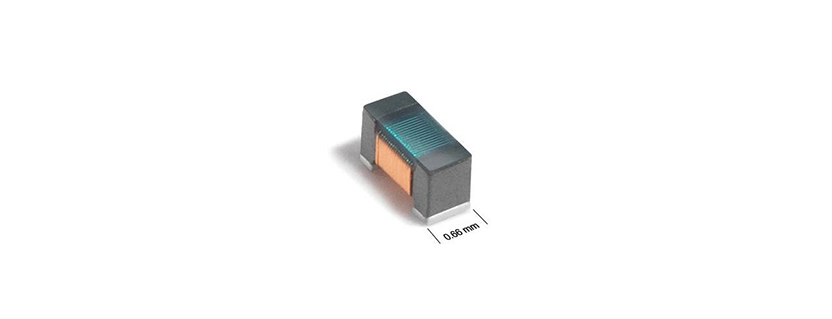

0402DF Series RF Inductor by Coilcraft
The 0402DF Series are wirewound chip inductors available in twenty five inductance values ranging from 20 nH to 3300 nH. They are developed for use in cellular applications, as a filter element in bandstop and low pass filter and as a one pole filter or RF choke in cellular bands. This series has a SRF ranging from 50 MHz to 2950 MHz. The ferrite construction enables them to handle high current levels and they can be also be used for ground-to-ground isolation.
Product Details
- Part Number: 0402DF Series
- Manufacturer: Coilcraft
- Description: Ferrite Wire wound Chip Inductors Up to 3300 nH
General Parameters
- Applications: Cellular, Mobile
- Inductance: 0.02 to 3.3 uH
- DC Resistance: 0.049 to 2.2 Ohms
- DC Current: 150 to 1400 mA
- Self Resonant Frequency: 80 to 2950 MHz
- Mounting: Surface Mount
- Industry Applications: Military, Commercial
- Type: Chip Inductor, Wire Wound Inductor
