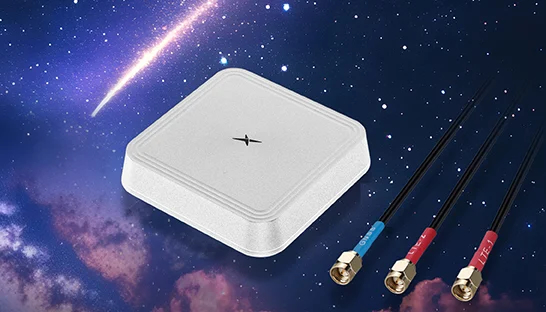

Comet Puck Antenna Series from Taoglas

The Comet Series solves the challenge of integrating high-performance connectivity into space-constrained or harsh environments. With support for global 5G/4G cellular, GNSS, Wi-Fi^®, and Bluetooth^®, these low-profile puck-style antennas deliver stable gain and high efficiency which is critical for reliable performance in compact applications where larger antennas can’t be used. They are designed to eliminate performance degradation issues, typically seen when mounting puck style antennas on metallic surfaces, and maintain stable, efficient connections.

Why Choose Comet Antennas?

• Space and Aesthetic Constraints Solved:
  Compact design (as small as 80x18mm) fits where traditional antennas can’t, without compromising signal performance.
• Installation Without Damage:
  MA32x offers magnetic/adhesive mounting for non-permanent installs, ideal for leased vehicles, temporary setups, or sensitive surfaces.
• Reliable Connectivity in Harsh Conditions:
  The Comet enclosure is IP67-rated with durable ASA housing, built to withstand UV, moisture, and heat in demanding environments.

Meet the Comet Series, straight from the source

Hear from Gary West, Product Engineer at Taoglas, as he introduces the Comet Series in this short video, Gary shows you two MA32x and MA58x versions, ultra-compact, high performance puck antennas.

Key Benefits

• Compact size, powerful signal performance.
• Flexible mounting for any application.
• Covers all global frequency bands.
• Durable, weather-resistant IP67 rated design

Typical Applications

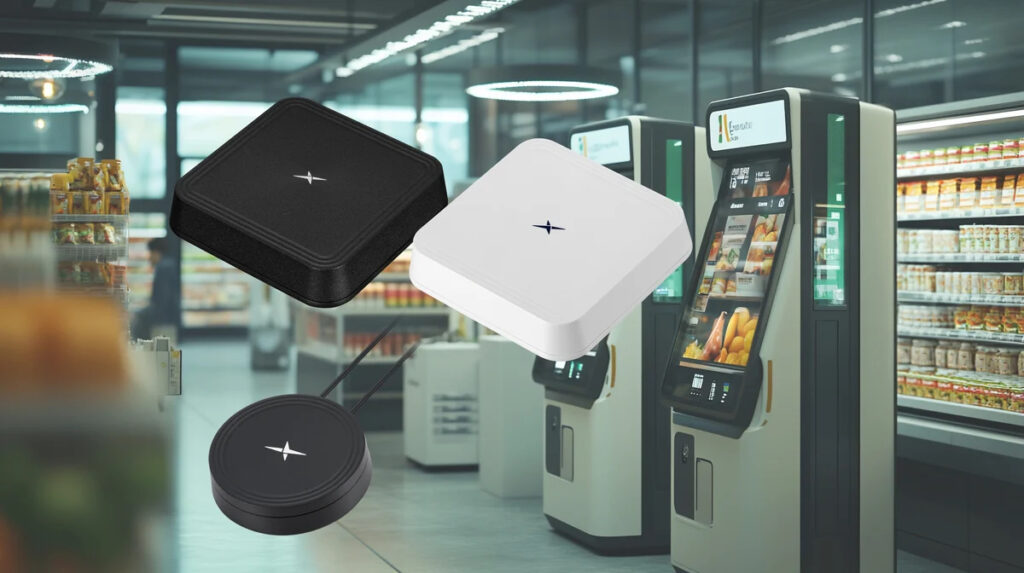

• Gateways and Routers
• Public Safety and Security
• Point of Sales Terminals
• Digital Signage
• Robotics/Autonomous

Comet MA32x Series

Comet Magnetic / Adhesive Mount Antenna

Dimensions: ∅80 x 18 mm

Up to 3-in-1 compact, low profile, puck style antenna. The Comet is available in combinations of GNSS, Wi-Fi, and cellular MIMO.

Comet Series Expansion

Comet MA58x Series

Permanent Antenna

Dimensions: 101 x 101 x 20 mm

Up to 4-in-1 compact, low profile, permanent mount puck antenna. The Comet MA58x series is available in combinations of GNSS, Wi-Fi, and cellular MIMO.

• Features: Compact, low-profile, rugged IP67 enclosure, supports GNSS, Wi-Fi 6/7, and 5G/4G Cellular MIMO (600 MHz–6 GHz).
• Benefits: Discreet design, outdoor-ready, high efficiency across all bands, ideal for harsh environments.
• Applications: Gateways, routers, public safety, POS terminals, digital signage, smart home, robotics.

MA581.A/W: 3-in-1 2x 5G/4G MIMO, 1x GNSS Screw/Stud Mount Antenna

MA582.A/W: 2-in-1 2x 5G/4G MIMO Screw/Stud Mount Antenna

MA583.A/W: 3-in-1 2x 5G/4G MIMO, 1x Wi-Fi Screw/Stud Mount Antenna

MA584.A/W: 4-in-1 2.4 to 8 GHz MIMO Screw/Stud Mount Antenna

MA585.A/W: 2-in-1 1x 5G/4G, 1x GNSS Screw/Stud Mount Antenna

Available in both Black and White enclosures.

*Cables and connectors are fully customisable upon request

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of Taoglas
