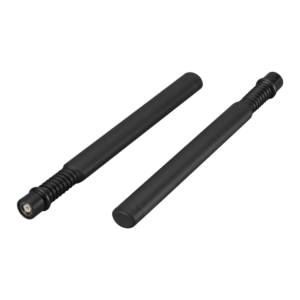

The Taoglas TG.90.2313 is a high-performance, terminal-mount spring antenna engineered for mission-critical connectivity in harsh and high-impact environments. Covering the wideband 696–2700 MHz frequency range, it delivers reliable cellular communications for defense, public safety, and ruggedized vehicle applications. Designed with a flexible spring system, the TG.90 withstands repeated mechanical shocks, impacts, and bending forces exceeding 90°, returning to its original position without permanent deformation. This makes it ideal for deployment on vehicles and equipment operating in unpredictable or physically demanding conditions. Its rugged, IP67-rated enclosure ensures dependable performance in extreme weather, off-road terrain, and exposed outdoor environments.
Typical applications include:
The TG.90.2313 is supplied with a TNC (M) connector for secure and straightforward integration into a wide range of communication systems. It is fully compliant with RoHS and REACH standards. For integration support or application-specific guidance, contact your local Taoglas sales team. Our global RF specialists can assist in selecting the optimal antenna solution for your deployment.
| Name | Value |
|---|---|
| Technology | External Antennas, Cellular |
| GNSS Type | n/a |
| GNSS Bands | n/a |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal Mount |
| Termination Style | Connector |
| Connector Type | TNC |
| Length (mm) | 20 |
| Width (mm) | 26 |
| Height (mm) | 280 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarization | Linear |
| Frequency Range | 696 – 2700 MHz |
| Connector Polarity | Normal |
| VSWR | <2:1 |
| Weight (g) | 84 |
| RoHS | Yes |
| Gain (Max) | 4.23 |
