ATEK MIDAS ATEK950P6

485 – 8000 MHz Switchable Filter Bank

Key Features

• Frequency Range485 – 8000 MHz
• 7 Switchable Band Pass Filters
• Input IP343 dBm
• Supply3.3 V to 5 V

Applications

• Test Equipment
• Electronic Warfare
• Wideband Receivers
• Spectrum Analysis
• SDR

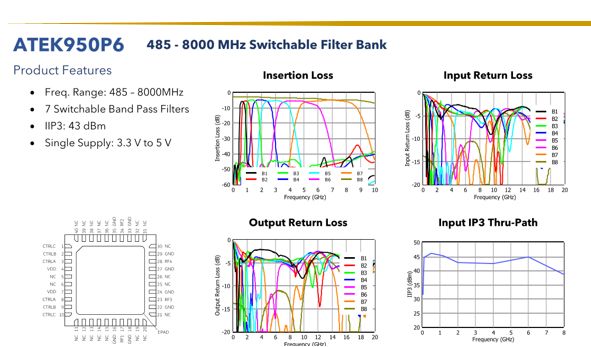

ATEK950P6 is a wideband switchable filter bank covering 485 MHz to 8000 MHz with seven independently selectable bandpass filter paths. The module features low insertion loss, high linearity (43 dBm IIP3), and fast switching speed of 150 nS. Single supply operation from 3.3V to 5V with logic-level switching control makes it ideal for test equipment, spectrum analysis, electronic warfare systems, and software-defined radio applications.

If your application demands wideband coverage, high selectivity, and maximum design flexibility, the ATEK950P6 delivers.

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of ATEK MIDAS
