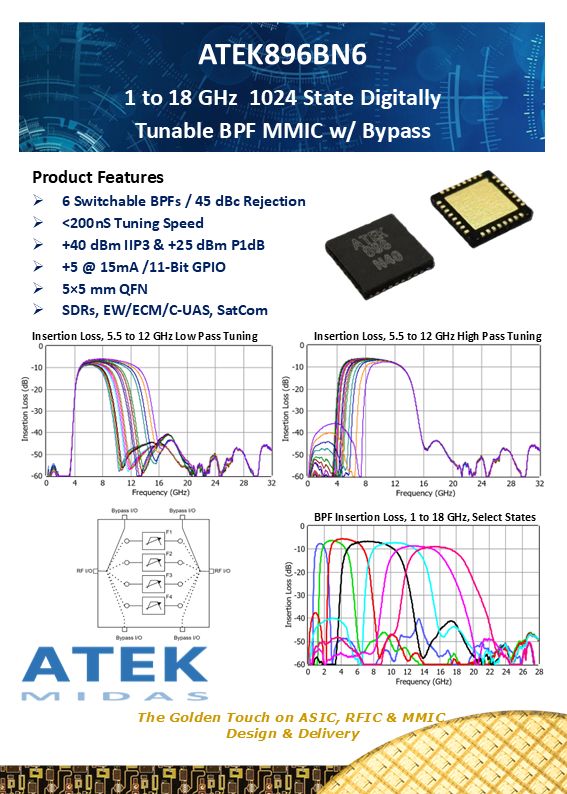

The ATEK896BN6 from ATEK MIDAS is a Tunable GaAs Band Pass Filter (BPF) MMIC with a passband from 1 to 18 GHz. It is designed to provide high stopband rejection while maintaining low in-band loss. This BPF consists of four bandpass filters and two bypass paths that support external filtering, through-line, and amplification to improve performance. It has a passband insertion loss of 6.5 dB and provides an out-of-band rejection of -45 dBc.
The ATEK896BN6 has a switching speed of 250 ns and uses a 3-bit GPIO interface to select one of four filter sections. Each of the two filters can be independently configured for low-pass or high-pass operation using an 8-bit GPIO control interface, and the two filters can be combined to create a band-pass response. This BPF requires a 3 to 5.5 V DC supply and draws 15 mA of current. It is housed in a compact surface-mount package measuring 6 x 6 mm and is ideal for wideband receivers and SDRs, defense, telecom, SATCOM, test and measurement, and low-SWaP applications.
