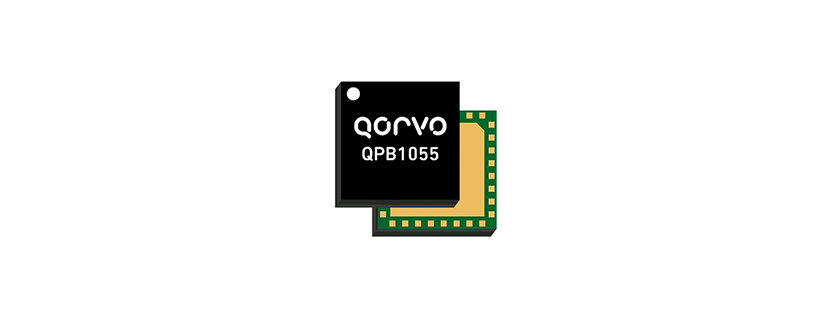

The QPB1055 from Qorvo is a 7-Channel Switched Filter Bank Module that operates from 5.2 to 5.9 GHz and is designed for C-band radar applications. It integrates BAW filtering, switching, routing, and control in a compact module, with seven switched filter channels and a bypass path. This 50-ohm switched filter bank has an insertion loss of less than 7 dB and provides 40 dBc of close-in rejection. It can be controlled via a GPIO interface with a switching speed of 480 ns.
The QPB1055 requires a 5 V DC supply and draws 100 µA of current. It is available in a 32-pin leadless OVM package measuring 6 × 6 × 0.793 mm. This RoHS-compliant module has an EAR99 export classification.
Product Details
Part Number: QPB1055
Manufacturer: Qorvo
Description: 7-Channel C-Band Switched Filter Bank Module from 5.2 to 5.9 GHz for C-Band Radar Applications
General Parameters
Parameter | Value |
Application | Radar |
Switch Configuration | 2 × SP8T |
Filter Types | BAW Filter |
Channels | 7 Channels |
Frequency | 5.2 to 5.9 GHz |
Insertion Loss | 2.3 to 7 dB |
Control | GPIO |
Bandwidth | 50 MHz |
Current | 100 µA |
Rejection | 40 to 60 dB |
Switching Speed | 480 ns |
Input Power | 29 dBm |
Supply Voltage | 3.3 to 5.5 V |
Return Loss | 7.5 to 24.3 dB (Input), 7 to 20.9 dB (Output) |
Impedance | 50 Ohms |
Package Type | Surface Mount |
Dimensions | 6 × 6 × 0.793 mm |
Operating Temperature | -40 to 85 °C |
Storage Temperature | -65 to 150 °C |
Control Voltage | -0.3 to 1.17 V |
