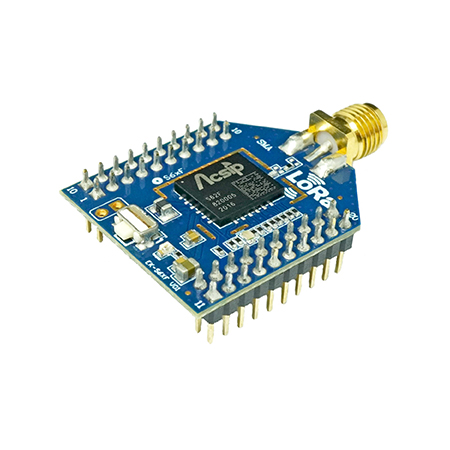

Evaluation board for the AcSiP S62F transceiver. The S62F features the LoRa long range modern that provides ultra-long range spread spectrum communication and high interference immunity whist minimizing current consumption.

The S62F can achieve a sensitivity of over -137 dBm using a TCXO and related bill of materials. The high sensitivity combined with the integrated +22 dBm(max.) power amplifier yields industry leading link budget making it optimal for any low data rate application requiring range or robustness.

LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

Key Features

• Small size：9 mm x 8 mm x 1.26 mm (Typ.)
• LoRa Transceiver Module, +22 dBm Max. RF output power
• Programmable bit rate up to 62.5 kbps LoRa
• Programmable bit rate up to 300 kbps FSK
• High sensitivity: down to -137 dBm (@BW=125KHz, SF=12)
• Embedded TCXO of 32MHz
