C41QS is Cavli’s entrant in the all-new NarrowBand-Internet of Things (NB-IoT) platform, based on low power wide area networks (LPWAN) technology. The C41QS is a NB2/NB1 Module compatible with 3GPP E-UTRA Release 14 standards supporting a wide array of frequency bands, making it usable globally while providing leverageable low-power consumption. The module is designed in a compact form factor of 17.7mm x 15.8mm x 2.0mm, making it an ideal solution for applications where size is constrained. The module supports an optional integrated GNSS and integrated eSIM, enabling Global Connectivity and Device management features powered by Cavli’s proprietary Hubble platform..

C41QS is ideal for applications that demand low space, low power consumption and aggressive pricing. It is suited for applications such as smart metering, smart parking, sensor and monitoring applications etc.

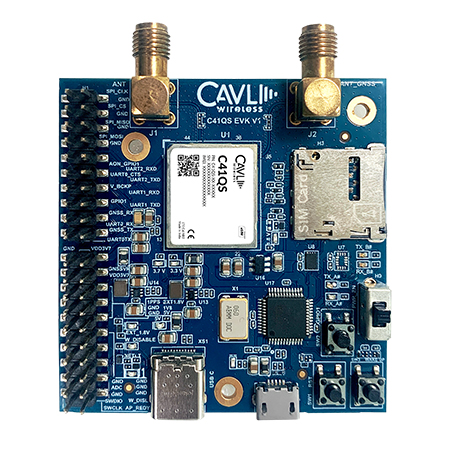

C41QS-EVK– Evaluation Kit:

The C41QS-EVK evaluation kits provide a simple, flexible and ready-to-use environment for evaluating Cavli’s C41QS cellular modules, as well as for designing and testing of cellular and GNSS applications. The kit is very user friendly, and has both USB and RS232 interfaces for development, testing and tracing. The kit comes with a builtin NBIOT Cellular Module, giving designers the flexibility to test and analyse the Cellular and GNSS capabilities of the Cavli C41QS module. The kits are to be used with a Windows PC via USB interface and can be used with an External activated SIM card as well if the Cavli Hubble Services are not required (not included).

Highlights:

• Cavli NB1 / NB 2 and GNSS Technology
• Easy to use
• Simple access to all pins and features of the cellular module
• Extensive visualization and evaluation features
• USB Port, UART, Ethernet, SD Card, SIM Socket, LCD Interface
• Free RTOS

Downloadable Resources

• Weblink
• Datasheet
