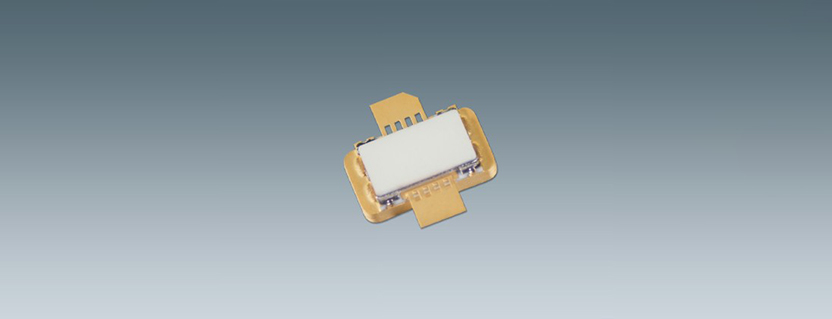

SGNL130M1H by Sumitomo Electric Device Innovations

SGNL130M1H by Sumitomo Electric Device Innovations

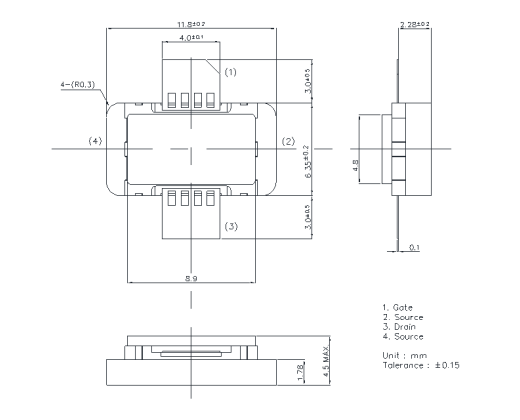

SGNL130M1H package dimensions

Part NumberSGNL130M1H
ClassGaN Product > GaN HEMTs for General Purpose
Outline / Package Code
M1H
FunctionDC – 3GHz High Power GaN-HEMT
Features
DescriptionSumitomo Electric’s GaN-HEMT SGNL130M1H offers high power, high efficiency, ease of matching, and greater consistency for DC to 3GHz high power applications with 50V operation.
Datasheet(574KB)
Frequency (GHz)DC–3.0
VDS (V)50
Spec. Frequency3
Pout (dBm)51.9
Gp (dB)15.9
ηD @ Psat (%)56.5
ConditionsPulse width: 200µs, Duty: 10%
NoteTc(op) = +25°C

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of Sumitomo Electric Device Innovations
