0.8 mm, 145 GHz High-Performance Vertical Launch Connector
SMI introduces its latest innovation: a 0.8 mm, 145 GHz high-performance Vertical Launch Connector, engineered for microstrip, CPW, and GCPW applications.
Designed for precision and reliability, this advanced solution delivers outstanding signal integrity while achieving ultra-low VSWR, minimal RF leakage, and reduced insertion loss—setting a new benchmark for high-frequency performance.

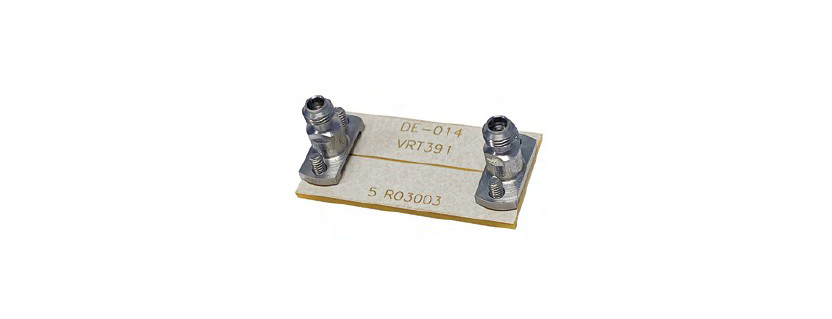

For microstrip or grounded coplanar waveguide (GCPW) designs, Southwest Microwave solderless vertical launch connectors provide optimal signal integrity and are reusable. Suitable for various board materials and thicknesses, the vertical launch connectors reduce footprint requirements without sacrificing performance, resulting in design and installation convenience.
| Model Number | Frequency (GHz) | Data Sheet |
|---|---|---|
| 24359-001J | 18, 27, 36, 40, 50, 67, 110, 125 |
| Model Number | Frequency (GHz) | Data Sheet |
|---|---|---|
| 22359-001J | 18, 27, 36, 40, 50, 67, 90 |
| Model Number | Frequency (GHz) | Data Sheet |
|---|---|---|
| 18359-001J | 18, 27, 36, 40, 50, 67 |
| Model Number | Frequency (GHz) | Data Sheet |
|---|---|---|
| 14359-001J | 18, 27, 36, 40, 50 |
| Model Number | Frequency (GHz) | Data Sheet |
|---|---|---|
| 10359-002J | 18, 27, 36, 40 |
| Model Number | Frequency (GHz) | Data Sheet |
|---|---|---|
| 290-127SF |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
