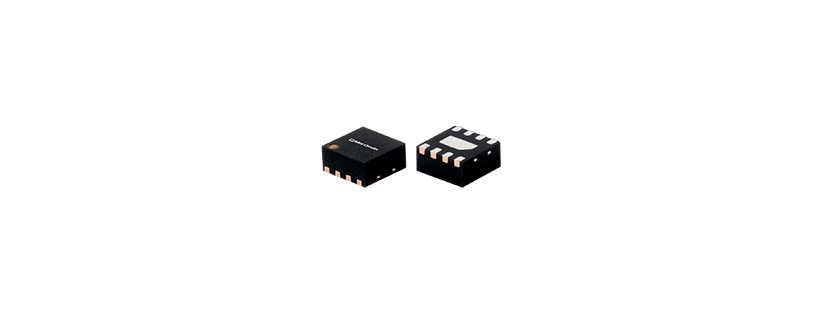

TSS-23ULN+ RF Amplifier by Mini-Circuits

The TSS-23ULN+ from Mini-Circuits is a RF Amplifier with Frequency 10 to 2000 MHz, Gain 13.3 to 28.2 dB, Noise Figure 0.3 to 1.5 dB, P1dB 0.04 to 0.15 W, P1dB 16.2 to 21.9 dBm. Tags: Surface Mount, Low Noise Amplifier. More details for TSS-23ULN+ can be seen below.

Product Details

• Part Number: TSS-23ULN+
• Manufacturer: Mini-Circuits
• Description: Low Noise Amplifier from 10 to 2000 MHz

General Parameters

• • Type: Low Noise Amplifier
  • Configuration: IC/MMIC/SMT
  • Application: Electronic Countermeasure (ECM), Cellular
  • Industry Application: Electronic Warfare, Radar, SATCOM
  • Frequency: 10 to 2000 MHz
  • Gain: 13.3 to 28.2 dB
  • Noise Figure: 0.3 to 1.5 dB
  • P1dB: 0.04 to 0.15 W
  • P1dB: 16.2 to 21.9 dBm
  • IP3: 28 to 38.3 dBm
  • IP3: 0.63 to 6.76 W
  • Input Power: 21 dBm
  • Power Dissipation: 0.9 W
  • Impedance: 50 Ohms
  • Pulsed/CW: CW
  • Reverse Isolation: 26.5 to 30.2 dB
  • Rise Time: 5.4 ns
  • Fall Time: 6.2 ns
  • Input Return Loss: 7 to 17 dB
  • Output Return Loss: 12 to 20 dB
  • Switching Time: 9.5 ns (ON Time) & 7.5 ns (OFF Time)
  • Supply Voltage: 2.7 to 5.25 V
  • Current Consumption: 3 to 70.6 mA
  • Package Type: Surface Mount
  • Package: 8-Lead QFN
  • Dimensions: 2 x 2 mm
  • Operating Temperature: -45 to 105 Degree C
  • Storage Temperature: -65 to 150 Degree C
