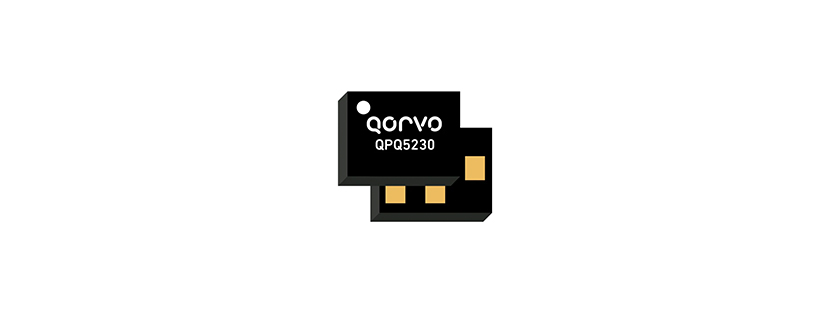

2.4 GHz Wi-Fi LTE coexBoost™ Filter
The QPQ5230 is a high-performance, high power Bulk Acoustic Wave (BAW) band-pass filter with extremely steep skirts, simultaneously exhibiting low loss in the Wi-Fi band and high near-in rejection in the adjacent bands.
QPQ5230 is specifically designed to enable coexistence of Wi-Fi and LTE signals within the same device or in close proximity to one another.
The QPQ5230 uses common module packaging techniques to achieve the industry standard 1.1 x 0.9 x 0.6 mm footprint.
Key Features
Typical Applications
Parameters
Parameter | Specification |
Technology | BAW |
Type | Infrastructure/Mobile |
Bands | B40 / B7 / B41 / n41 |
Frequency (MHz) | 2,412 to 2,472 |
Bandwidth (MHz) | 20 / 40 |
Insertion Loss (dB) | 0.8 |
I/O Configuration | Single Ended |
Package Type | Laminate |
Package Size (mm) | 1.1 × 0.9 |
RoHS | Yes |
Lead Free | Yes |
Halogen Free | Yes |
ITAR Restricted | No |
ECCN | 5A991G |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Qorvo
