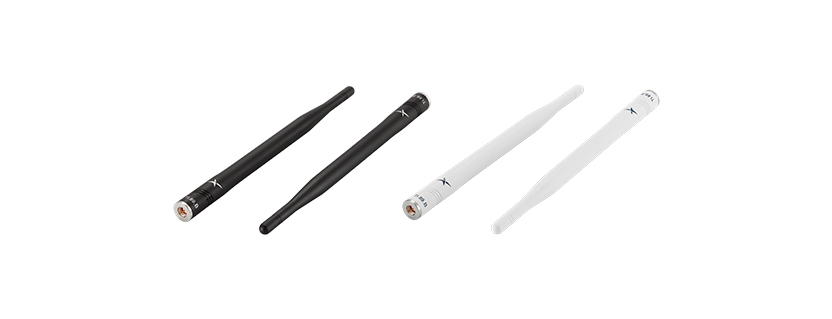

New Taoglas TI.89.B ISM/LoRa (860-930 MHz) Terminal Mount Antenna 2 dBi SMA(M) Fixed Straight Waterproof Enclosure

• Terminal Mount Waterproof Antenna
• Covering 860-930 MHz Bands
• Dipole Structure with Real Omni-Directional Radiation Pattern
• Ground Independent
• IP67 Rated Enclosure Design
• Dims: Ø 13 x 180 mm
• Connector: Standard SMA(M)
• RoHS & Reach Compliant

Overview

TI.89.B ISM/LoRa (860-930 MHz) Terminal Mount Antenna 2dBi SMA(M) Fixed Straight Waterproof Enclosure

The Taoglas TI.89.B is a high-performance 860-930 MHz terminal antenna designed for reliable long-range wireless communication in ISM, LoRaWAN, Sigfox, and RFID applications. The standard dipole structure design featuring a 2 dBi peak gain, omnidirectional radiation pattern and ground independent, this antenna ensures stable and consistent signal coverage across a wide frequency band. Its enclosure is designed to be IP67 rated when installed correctly making it suitable for use in hard environments.

Typical Applications:

• LoRaWAN Gateways and Nodes
• Smart Metering
• Industrial IoT (IoT)
• Smart Agriculture
• Asset and Fleet Tracking
• Environmental Monitoring
• Smart Cities
• Security and Access Control

Engineered with a robust, durable TPEE housing, the TI.89.B is ideal for both indoor and outdoor deployments where environmental resistance and signal integrity are critical. Its SMA(M) fixed straight connector allows for easy installation directly onto terminals, gateways, or IoT devices, ensuring a secure and reliable RF connection.

The antenna connector type can be customizable, please contact your regional Taoglas customer support team for installation guidelines or additional support to integrate and test this antenna’s performance in your device.

Technical Specification

Name	Value
Technology	External Antennas, ISM/LoRA
IP Rating	IP67
Impedance	50
Minimum Operating Temperature (℃)	-40
Maximum Operating Temperature (℃)	85
Mounting Style	Terminal
Termination Style	Connector Mount
Connector Type	SMA
Length (mm)	13
Width (mm)	13
Height (mm)	180
Connector Body Style	Straight
Polarity	Vertical
Frequency Range	860 – 930
Connector Polarity	Normal
VSWR	<2.5
Weight (g)	23
RoHS	Yes
Gain (Max)	3.79

View the White TI.89.B ISM/LoRa (860-930 MHz) Terminal Mount Antenna
