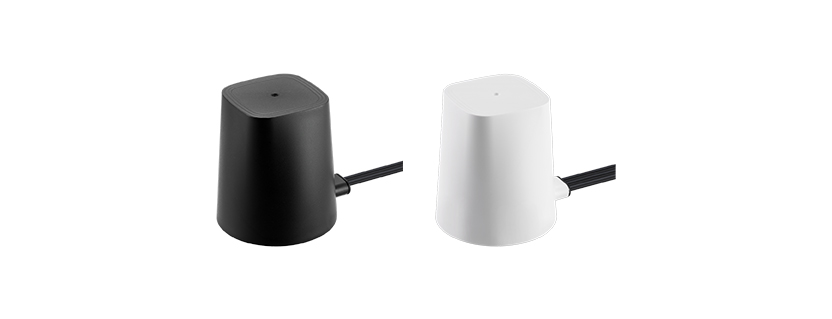

The Taoglas MA344 is a high‑performance 3‑in‑1 magnet‑mount combination antenna, integrating one active GNSS antenna with two wideband cellular antennas in a single compact and rugged enclosure. The antenna is designed to provide reliable positioning and high‑quality cellular connectivity for automotive, industrial, and remote‑monitoring applications where rapid installation and robust environmental performance are required.
The GNSS element supports multi‑constellation and multi‑band operation, covering GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS, including L1 and L5 frequency bands for improved positional accuracy and resilience in challenging RF environments.
The two cellular antenna elements provide 2×2 MIMO capability, covering a broad frequency range from 600 MHz to 6000 MHz. This wideband performance enables support for global cellular deployments, ensuring compatibility with current and next‑generation cellular networks.
The MA344 features a robust IP67‑rated waterproof enclosure and a magnetic mounting base, allowing quick and secure installation on vehicle roofs or metallic surfaces without the need for drilling. The antenna is supplied with 2 m RG‑174LL cables terminated with SMA (M) connectors, simplifying integration with GNSS and cellular modules.
Typical applications include:
The MA344 has been designed and validated to deliver consistent RF performance in both free‑space and ground‑plane conditions. For optimal results, installation on a metallic surface is recommended. For further guidance on integration, testing, or customization options, please contact your regional Taoglas customer support team.
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive, Magnetic |
| Termination Style | Connector Mount |
| Connector Type | SMA |
| Length (mm) | 58 |
| Width (mm) | 58 |
| Height (mm) | 65 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear/RHCP |
| Frequency Range | 600 – 6000 |
| Connector Polarity | M |
| Cable Length (mm) | 2000 |
| VSWR | 2:1 |
| Weight (g) | 161 |
| RoHS | Yes |
| Gain (Max) | 31.7 |
