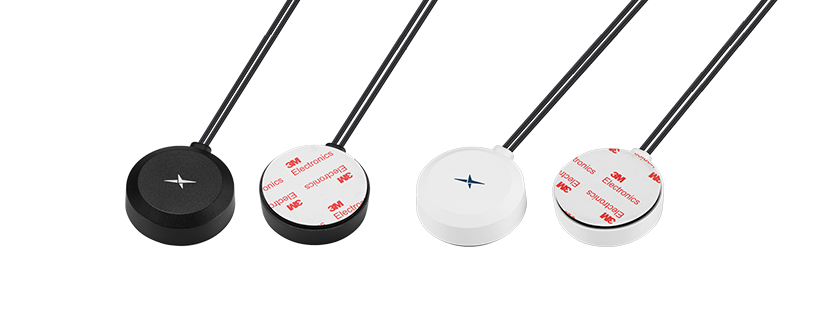

New Taoglas Stingray II – MA290.A 2-in-1 GNSS and 5G/Wi-Fi® Adhesive Mount Antenna
- Adhesive Mount Antenna
- 1x GNSS Covering L1
- 1x Cellular (With Added Wi-Fi® 6)
- Covering: 600-7125 MHz
- IP67 Waterproof Enclosure
- Dims: Ø56.22 x 19.4 mm
- Cables: 3 m RG-174LL
- Connectors: SMA(M)ST
- RoHS & Reach Compliant
Overview
Integrated GNSS & Wideband Connectivity
The Taoglas Stingray MA290 series is a low‑profile 2‑in‑1 adhesive‑mount antenna combining GNSS L1 and wideband cellular/Wi‑Fi® functionality in a single compact housing. The antenna supports GNSS L1 operation alongside cellular and Wi‑Fi® coverage from 600 MHz to 7125 MHz, making it suitable for a wide range of connected device applications.
Designed for quick and flexible installation, the MA290 series features a strong adhesive mounting solution and is supplied with 3 m RG‑174 cables terminated with SMA male straight connectors. The robust IP67‑rated enclosure ensures reliable performance in demanding indoor and outdoor environments, making the Stingray II series an ideal solution for space‑constrained designs requiring dependable multi‑radio connectivity.
Typical applications include:
- Telematics and fleet management
- Asset tracking and logistics
- Industrial and commercial IoT devices
- Smart city and infrastructure equipment
- Automotive and transportation systems
Customized cable and connector versions are also available upon request. Contact your regional Taoglas customer support team for further information.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Connector Type | SMA |
| Length (mm) | 56.22 |
| Width (mm) | 56.22 |
| Height (mm) | 19.4 |
| Cable Type | RG-174LL |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 600 – 7125 MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 3:1 |
| Weight (g) | 118.6 |
| RoHS | Yes |
| Gain (Max) | 4.92 |
View the white Stingray II – MA290.W 2-in-1 GNSS and 5G/Wi-Fi® Adhesive Mount Antenna
