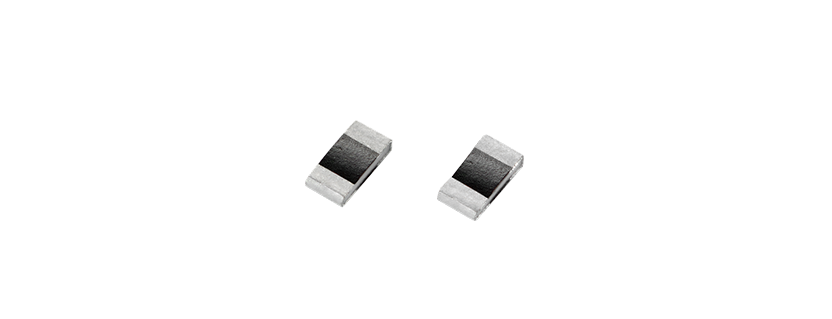

The Taoglas WLA.05 is a compact ceramic substrate SMD loop antenna designed for use in 2.4 GHz systems such as Bluetooth®, Wi-Fi®, BLE, WLAN, THREAD and ZigBee®. It is designed to be utilized on devices with small ground planes, and due to the miniature footprint size of just 1.6 x 0.8 mm, it can be used in devices where larger antennas do not fit. It is delivered on tape and reel for ease of integration through pick and place machines.
For further information regarding the integration of the WLA.05 into your device please contact your regional Taoglas customer support team.
| Name | Value |
|---|---|
| Technology | Embedded Antennas, Wi-Fi®/Bluetooth® |
| Wi-Fi Bands | 2.4 GHz |
| Mechanical Style | SMD/SMT |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | SMD/SMT |
| Termination Style | SMD |
| Length (mm) | 1.6 |
| Width (mm) | 0.8 |
| Height (mm) | 0.3 |
| Polarity | Linear |
| Frequency Range | 2400 – 2500 MHz |
| Cable Length (mm) | n/a |
| VSWR | 1.5:1 |
| Weight (g) | 0.01 |
| RoHS | Yes |
| Gain (Max) | 0.24 |
