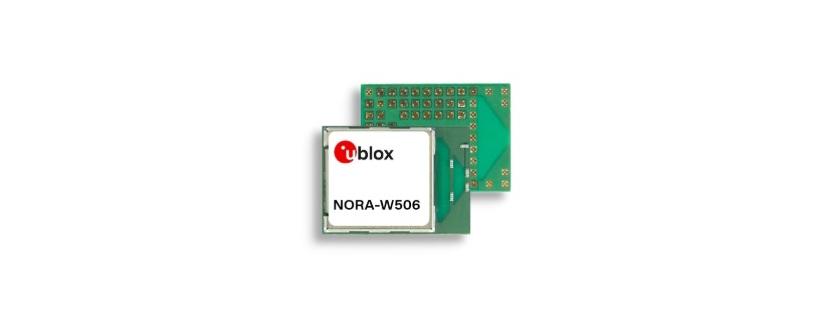

NORA-W50/W51 Series RF Module by u-blox AG
The NORA-W50/W51 Series from u-blox AG is a RF Module with Data Rate Up to 86 Mbps, Sensitivity -102 to -94 dBm, Supply Voltage 3.3 V and 1.8 V, Current Receiving 71 to 78 mA, Current Transmitting 130 to 354 mA. More details for NORA-W50/W51 Series can be seen below.
Product Details
- Part Number: NORA-W50/W51 Series
- Manufacturer: u-blox AG
- Description: Stand-Alone Wi-Fi 6 and Bluetooth LE v5.4 Multi-Radio Modules
General Parameters
- Technology: WiFi + Bluetooth
- Application: Industrial automation, Smart buildings, Smart city, Medical and Health devices, Telematics, Point-of-sales
- Bluetooth Standards: Bluetooth v5.4
- WiFi Standards: 802.11 b/g/n/ax
- Standard Supported: Bluetooth Low Energy
- Mesh Networking: Yes
- Data Rate: Up to 86 Mbps
- Sensitivity: -102 to -94 dBm
- Supply Voltage: 3.3 V and 1.8 V
- Current Receiving: 71 to 78 mA
- Current Transmitting: 130 to 354 mA
- Integrated Antenna: Yes
- Antenna: Embedded PCB
- Interface Type: I2S, I2C, UART, 12C, GPIO, SDIO, SPI
- Security: WPA2/WPA3
- Memory: RAM: 512 kB, Flash: 4 MB / 8 MB
- Chip: CC3501E, CC3551E
- Mounting Type: Surface Mount
- Dimension: NORA-W501/W511: 10.4 x 11.2 x 1.9 mm, NORA-W506/W516: 10.4 x 14.3 x 1.9 mm
- Operating Temperature: -40 to 85 Degree C
- Storage Temperature: -40 to 85 Degree C
- RoHS: Yes
