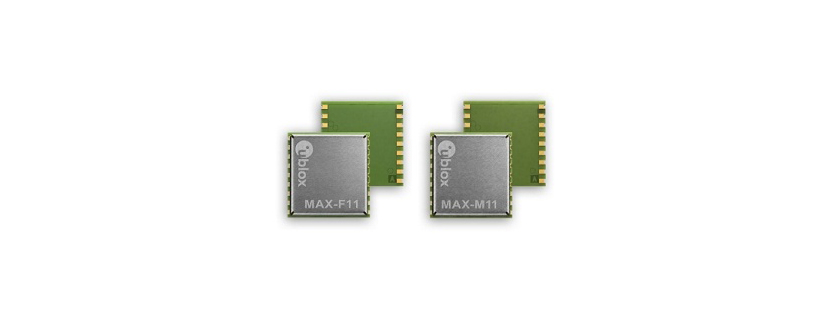

MAX-F11/M11 Series GNSS Module by u-blox AG

The MAX-F11/M11 Series from u-blox are Precision GNSS Modules that support single-band (L1) and dual-band (L1/L5) GNSS reception. They are designed to provide multi-constellation positioning using GPS, Galileo, BeiDou, QZSS, NavIC, and SBAS. These GNSS modules are built on the u-blox 11 platform and support selective L1/L5 operation to provide an optimal balance between positioning accuracy and power consumption in challenging environments. They also integrate a SAW-LNA-SAW RF front-end to improve immunity to co-located cellular transmitters. These modules provide horizontal position accuracy of 1.5 m CEP with SBAS.

The MAX-F11/M11 Series of GNSS modules have an acquisition time of 2 s (hot start) and 28 s (cold start), with a tracking and navigation sensitivity of -167 dBm. They can further improve positioning performance using AssistNow Predictive Orbits and Live Orbits data downloads. These chips support firmware upgrades via a UART interface, and also integrate data logging, geofencing, indoor detection, time pulse output, and RTC crystal support. They require a DC supply of 1.76 to 3.6 V and consume less than 34 mW of power using LEAP power-saving mode. These GNSS chips are available in packages measuring 9.7 × 10.1 × 2.5 mm.

Product Details

• Part Number: MAX-F11/M11 Series
• Manufacturer: u-blox AG
• Description: Precision Low-Power GNSS Modules with Single and Dual-Band L1/L5 Connectivity

General Parameters

• Type: Module
• Constellation: QZSS, BeiDou, GALILEO, GLONASS, GPS, NAVIC
• Band: B1, E1, L1, B1c, B1I, B2a, E5a, E5b, L1C/A, L5
• Configuration: LNA, Oscillator, SAW Filter
• Integrated Antenna: Yes
• Accuracy: 1.0 m (1σ) / 1.5 m CEP (with SBAS), 1.5 m (1σ) / 2.0 m CEP (without SBAS)
• Navigation Sensitivity: -167 dBm
• Tracking Sensitivity: -167 dBm
• Cold Start Sensitivity: -148 dBm
• Cold Start: 28 s
• TTFF Hot Start: 2 s
• Update Rate: Up to 10 Hz (3 concurrent GNSS), Up to 25 Hz (single GNSS)
• Supply Voltage: 1.76 to 3.6 V
• Power Consumption: 22 to 28 mW
• Interface: UART, I2C
• Package Type: Surface Mount
• Package: 18-Pin LCC (Leadless Chip Carrier)
• Dimensions: 9.7 × 10.1 × 2.5 mm
• Weight: 0.6 g
• RoHS: Yes
• Operating Temperature: -40 to 85 Degree C
• Storage Temperature: -40 to 85 Degree C
