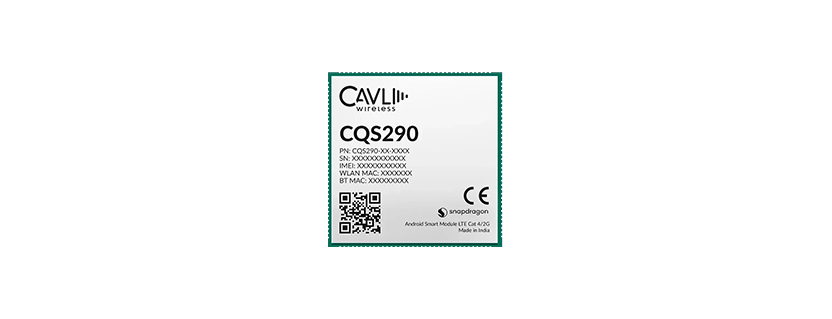

Cavli CQS290 enables OEMs to build display-rich Android-based IoT devices with reliable LTE Cat 4 connectivity.
Designed for smart POS terminals, kiosks, vending systems, automotive clusters, and connected display applications, CQS290 integrates an ARM Cortex-A53 quad-core processor, Adreno 702 GPU, MIPI-DSI interface, Android/Linux OS support, and SDK flexibility to accelerate product development and enable scalable IoT deployments.
Discover how CQS290 is powering the next generation of intelligent, display-enabled IoT devices
CQS290 LTE Cat 4 Android Smart Modules
Cavli debuted the CQS290 as a flagship series of LTE Cat 4 Android smart modules with 2G fallback capability. The module is powered by ARM™ Cortex A53 quad-core CPU architecture and built-in Adreno™ 702 GPU that delivers stronger graphics capabilities, better image quality, and excellent battery efficiency. CQS290 supports versatile features such as USB 2.0 with OTG function, Bluetooth 5.0, FM & Wi-Fi 5 making it ideal for a wide range of applications such as POS terminals, Smart Vending Machines, Smart Kiosks etc.
With extensive SDK support powered by AOSP, the module’s functionalities can be customised and tailored to suite an OEM’s solution requirements. Available in global variants with various memory configurations, CQS290 supports multi-constellation GNSS, including GPS, BDS, GLONASS, Galileo, QZSS, and SBAS powered by the Qualcomm Location Suite Gen 9VT.
Key Highlights
- Quad core Arm Cortex A53 processor up to 2 GHz
- LTE Cat 4
- LCD Interface
- Applicable Region – GLOBAL
Available Form-Factor: LCC+LGA
Technical Data
Cellular Bands Supported – WW : B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 /B38 /B40 /B41 /B66 /B71* | GSM – 900/1800 MHz
Supported Location Services: GPS / BDS / GLONASS / Galileo QZSS / SBAS Ranging Support CQS290: L1
OS: Android / Linux OS
Cellular Connectivity Download & Uplink Speed (* Peak Values): LTE Cat 4 :150Mbps (DL) & 50 Mbps (UL), GSM 2G :236.8Kbps (DL) & 236.8 Kbps (UL)
Packaging: Dimension :40.5 x 40.5 x TBD mm, LCC+LGA Package
Interfaces: 1xLCD (DSI)**, 2xCamera (CSI)**, 2xCCI I2C, 2xAnalog Audio Out**, 2xAnalog Audio In, 2xDigital Audio In, 1xUSB 2.0(OTG Support), 1xUSIM, 3xUART, 1xJTAG, 37xGPIO**, 1xSDC 3.0, 1xADC**, 2xI2C**, 1xI3C**, 1xSPI**, 1xTouch Interface (I2C), 1xVIB_DRV, 1xWi-FI & Bluetooth ANT, 1xMain ANT, 1xDIV ANT, 1xGNSS ANT *Optional feature | **Requires SDK
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Cavli Wireless
