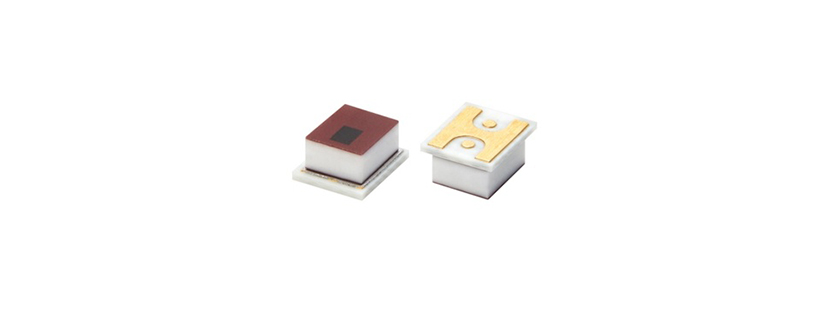

HFHKI-3100+ RF High Pass Filter by Mini-Circuits

The HFHKI-3100+ from Mini-Circuits is a RF High Pass Filter with Frequency 3500 to 12500 MHz, Bandwidth 9000 MHz, Insertion Loss 1 to 2.6 dB, Power 6 W, Rejection 23 to 70 dB. Tags: Surface Mount, Ceramic Filter. More details for HFHKI-3100+ can be seen below.

Product Details

• Part Number: HFHKI-3100+
• Manufacturer: Mini Circuits
• Description: 6 W, LTCC Surface Mount High Pass Filter from 3500 to 12500 MHz

General Parameters

• Type: Ceramic Filter
• Frequency: 3500 to 12500 MHz
• Bandwidth: 9000 MHz
• Insertion Loss: 1 to 2.6 dB
• Power: 6 W
• Rejection: 23 to 70 dB
• Lower Rejection: 23 to 70 dB
• Return Loss: 11 to 13 dB
• Impedance: 50 Ohms
• Package Type: Surface Mount
• Operating Temperature: -55 to 125 Degree C
• Storage Temperature: -55 to 125 Degree C
• Application Industry: Cellular, Radar, Test & Measurement, SATCOM
• Application: 5G
• RoHS: Yes
