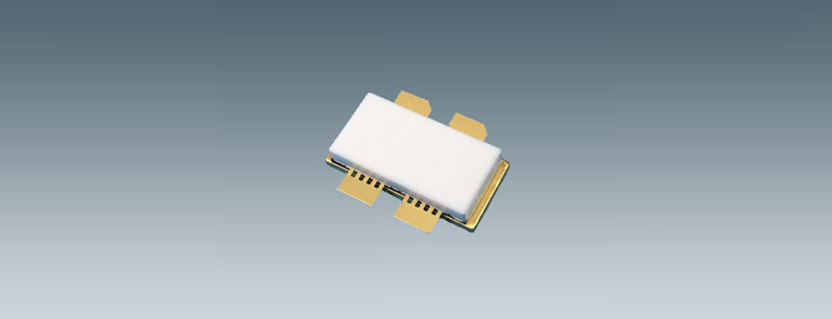

Sumitomo Electric’s GaN-HEMT SGN2731-800L-R

Sumitomo Electric's GaN-HEMT SGN2731-800L-R

Sumitomo Electric’s GaN-HEMT SGN2731-800L-R

Part NumberSGN2731-800L-R
ClassGaN Product > GaN HEMTs for Radar
Outline / Package CodeM2C
FunctionHigh Voltage – High Power GaN-HEMT for Radar
Features
  • High Power: 1000W (Typ.)
  • High Efficiency: 62% (Typ.)
  • Broad Band: 2.7 to 3.1GHz
  • Ease of Matching: Input / Output Pre-matched for 3.1GHz
  • Small Flangeless Package
DescriptionSumitomo Electric’s GaN-HEMT SGN2731-800L-R offers high power, high efficiency, ease of matching, and greater consistency across 2.7 to 3.1GHz high-power applications with 50V operation.
Datasheet353KB PDF
Frequency (GHz)2.7–3.1
Pout (dBm)60
Power Gain (dB)15
Efficiency (%)62
VDS (V)50
IDS (DC) (A)0.5
ConditionPulse width: 200µsec, Duty: 10%
NoteTc(op) = +25°C

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of Sumitomo Electric Device Innovations
