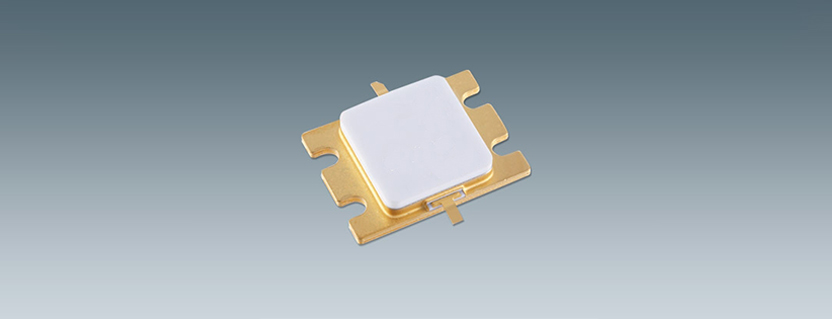

Sumitomo Electric’s GaN-HEMT SGN2833-200L-R

Sumitomo Electric’s GaN-HEMT SGN2833-200L-R

Part NumberSGN2833-200L-R
ClassGaN Product > GaN HEMTs for Radar
Outline / Package CodeIV
FunctionHigh Voltage – High Power GaN-HEMT for Radar
Features
  • High Power: 280W (Typ.) @ Pin = 16W (42dBm)
  • High Efficiency: 60% (Typ.) @ Pin = 16W (42dBm)
  • Broad Band: 2.75 to 3.3GHz
  • Impedance Matched Zin/Zout = 50Ω
  • Hermetically Sealed Package
DescriptionSumitomo Electric’s GaN-HEMT SGN2833-200L-R offers high power, high efficiency and greater consistency covering 2.75 to 3.3GHz for S-band radar applications with 50V operation.
Datasheet326KB PDF
Frequency (GHz)2.75–3.3
Pout (dBm)54.5
Power Gain (dB)12.5
Efficiency (%)60
VDS (V)50
IDS (DC) (A)0.5
ConditionPulse width: 200µsec, Duty: 10%
NoteTc(op) = +25°C

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of Sumitomo Electric Device Innovations
