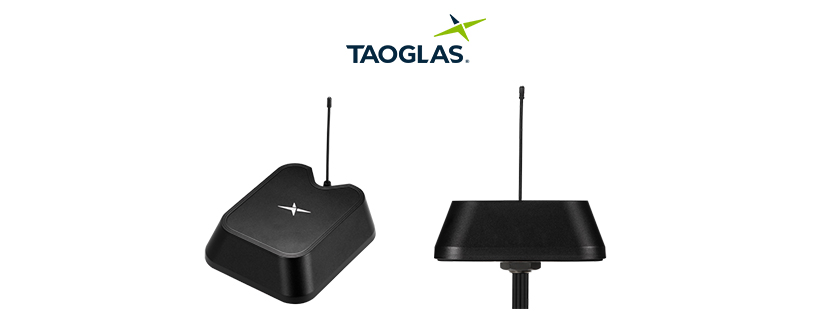

New Taoglas Patriot Series 10-in-1 High-Performance Super Compact Combination Antenna With Interchangeable Whip
- Factory Fin Replacement
- Ford PIU Factory Connections
- LMR & Triband Whip (700-900 MHz)
- 5G/4G LTE Cellular 600-6000MHz
- Wi-Fi 2.4/5.8/7.1 GHz
- GPS/GNSS – L1/L5 Multiband
- IP67 & IP69K Waterproof Enclosure
Patriot Series 10-in-1 High-Performance Super Compact Combination Antenna With Interchangeable Whip
The Patriot is a cutting-edge, multi-combination antenna engineered specifically for the Ford Interceptor vehicle, the most widely used police vehicle in the U.S. Designed to eliminate the need for multiple antennas, it offers up to 18-in-1 connectivity, including 5G,/4G, GNSS (L1 & L1/L5), Wi-Fi®, SDRAS and LMR/TETRA, ensuring optimal performance for first responders and fleet vehicles. It is a compact, low-profile design that allows for seamless integration onto vehicle roofs, utilizing existing OEM mounting connections to simplify installation.
The Patriot guarantees enhanced signal strength and with its rugged IP67-rated enclosure and ability to mount behind the roof ribs, this next-generation antenna delivers superior durability, reliability, and efficiency, making it one of the most versatile and compact solutions available today. With a small footprint of (L)205mm x (W)180mm and a whip height of up to 164mm*, the Compact Design of the Patriot ensures a low-profile, unobtrusive installation.
Product Features:
- Factory Fin Replacement: Swaps directly with the OEM Ford shark fin antenna for a seamless, factory-integrated, low-profile appearance.
- Ford PIU Factory Connections: Pre-configured with direct plug-and-play connections to integrate directly into the standard Ford PIU wiring loom.
- LMR & Triband Whip (700-900 MHz): High-performance external whip optimized for local public safety radio networks and critical voice dispatch.
- 5G/4G LTE Cellular 600-6000MHz: Robust cellular performance tuned for continuous data routing to your vehicle’s Panasonic Toughbook mobile workstation.
- Wi-Fi 2.4/5.8/7.1 GHz: Comprehensive Wi-Fi 6E/7 support for fast local wireless infrastructure links, video offloading, and hotspot capabilities.
- GPS/GNSS – L1/L5 Multiband: Sub-meter satellite tracking accuracy for real-time dispatch, automatic vehicle location (AVL), and mapping software.
- IP67 & IP69K Waterproof Enclosure: Ruggedized, dual-rated housing fully sealed against heavy storms, car washes, and high-pressure steam cleaning.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP69K |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector Mount |
| Connector Type | Mini UHF, QMA, Quad FAKRA, SMA, TNC |
| Length (mm) | 205 |
| Width (mm) | 180 |
| Height (mm) | 60 |
| Cable Type | RG-174, TGC-1.5DS, TGC-200 |
| Connector Body Style | Straight |
| Polarization | Linear, RHCP |
| Frequency Range | 600 – 7125 MHz |
| Connector Polarity | Normal, Reverse |
| Cable Length (mm) | 5000 |
| VSWR | 2:1 |
| Weight (g) | 840 |
| RoHS | Yes |
| Gain (Max) | 29.65 |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Taoglas
