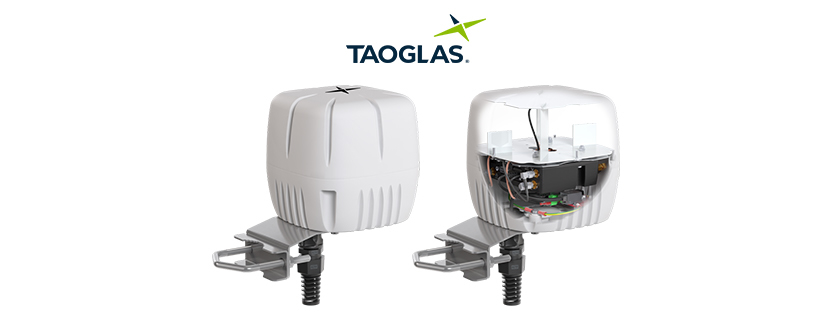

The Taoglas THOR55LPP for Semtech RV55 Routers is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. It delivers reliable, high-speed wireless connectivity in even the most demanding environments. This all-in-one unit integrates high-gain omnidirectional 5G/4G, Wi-Fi, and GNSS antennas with Semtech routers into a compact, rugged IP67-rated enclosure. Integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions.
Typical applications include:
The heavy-duty, fully IP67 rated external ASA enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6350 MHz, the THOR55LPP is a fantastic solution for wideband cellular applications.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 80 |
| Mounting Style | Pole, Wall |
| Termination Style | Connector Mount |
| Connector Type | RJ45 |
| Length (mm) | 158 |
| Width (mm) | 158 |
| Height (mm) | 157 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarization | Vertical |
| Frequency Range | 600 – 6350 MHz |
| Connector Polarity | Normal |
| VSWR | <3 |
| Weight (g) | 1500 |
| RoHS | Yes |
| Gain (Max) | 5 |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Taoglas
